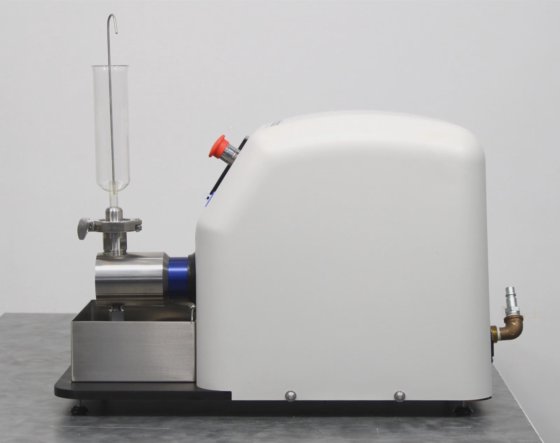

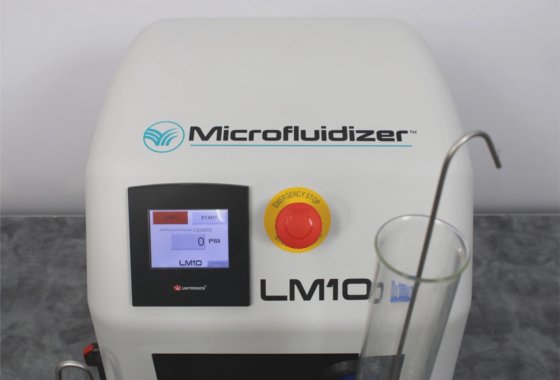

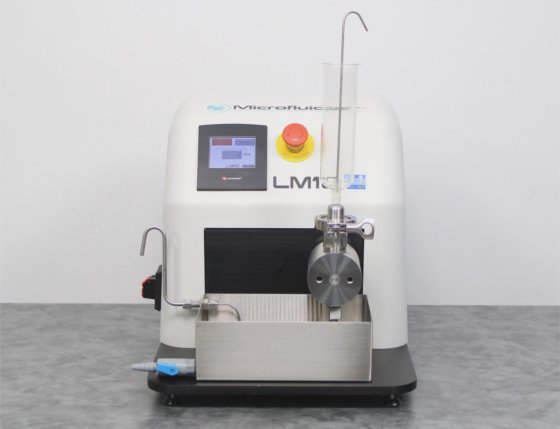

Microfluidics LM10 Microfluidizer High-Shear Fluid Processor Lab Homogenizer in Cridersville, OH, USA
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Year
- 2022

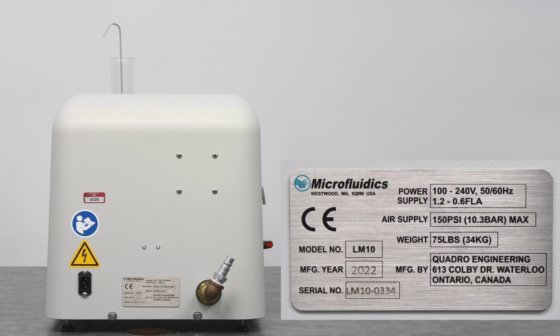

- Serial number
- LM10-0334
- Mpn
- LM10
- Intended use/discipline
- Biological Laboratory, Medical Laboratory, Microbiological Laboratory
- Model no.
- LM10
- Pressure range
- Up to 23,000 psi (1,546 bar)
- Minimum sample size
- 30 ml
- Flow rate range
- Up to 600 ml/min
- Pump actuator
- Pneumatically driven
- Air utility requirement
- Free mode = 57 scfm @ 120 psi (27 l/s @ 8.3 bar)
- Air supply max
- 150 psi (10.3 bar) max
- Noise level
- <80dB TWA
- Power rating
- 100-240V, 50/60Hz, 5A
- Dimensions
- 17.25 x 26.58 x 18.87 in (43.8 x 67.5 x 47.9 cm)
- Weight
- 75 lb (34 kg)
- Category
- Homogenizers in USA
- Subcategory
- Medical & lab equipment
- Subcategory 2
- Healthcare, lab & dental
- Subcategory 3
- Medical & lab equipment, devices
- Listing ID
- 105970794
Description
“Tested and working Microfluidics LM10 microfluidizer high-shear fluid processor with H10Z 100 micron ceramic interaction chamber, thermocouple connection points, 300 mL glass reservoir with stopper, product cooling bath, and power cable, backed by 90-day warranty.”
You Will Receive:
- Microfluidics LM10 Microfluidizer High-Shear Fluid Processor
- H10Z 100 Micron Ceramic Interaction Chamber (IXC)
- Thermocouple Connection Points

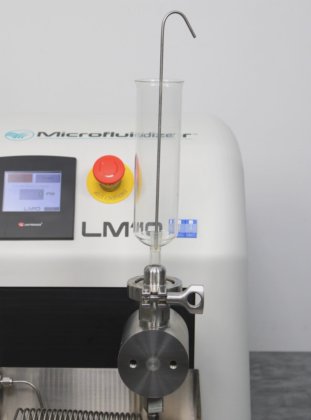

- 300 mL Glass Reservoir with Stopper

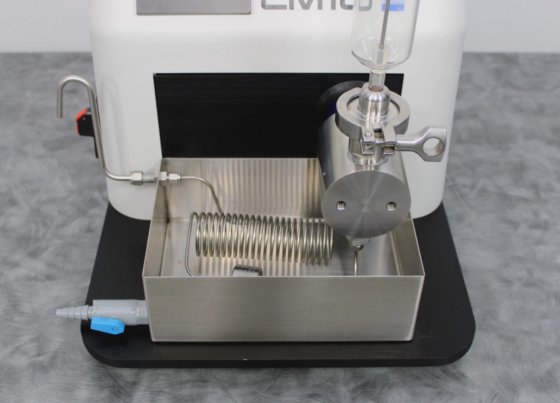

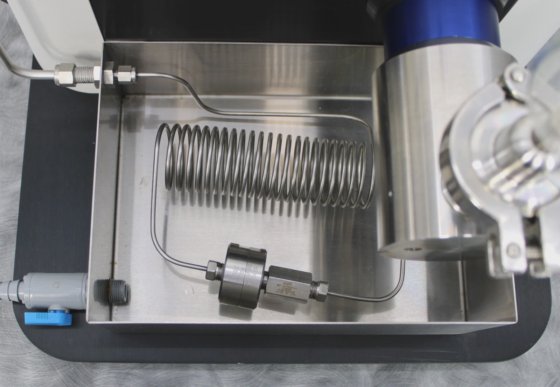

- Product Cooling Bath
- Power Cable
- 90-Day Warranty
Notice:
You will need an air supply of 57 scfm @ 120 psi (27 l/s @ 8.3 bar) to operate this processor.

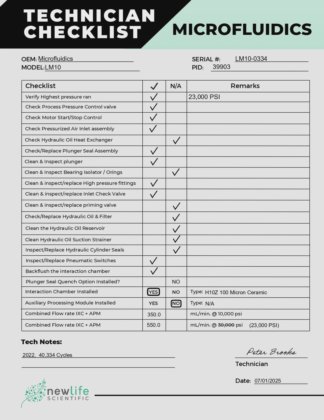

Fully Tested and Working Without Issue:
After its initial disinfection and inspection, our technicians tested the Microfluidics LM10 microfluidizer high-shear fluid processor with the following results:
- Ran/sanitized with 2 liters of isopropyl alcohol:
PASSED
- Verify maximum operating pressure of 23,000 psi:
PASSED
- Tested flow rates:
PASSED
$15,692 USD
