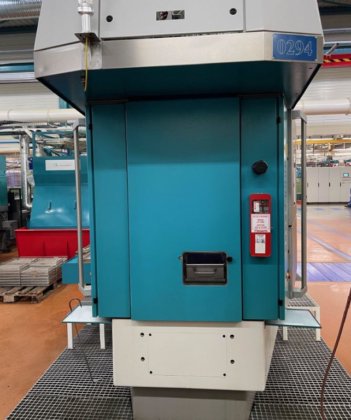

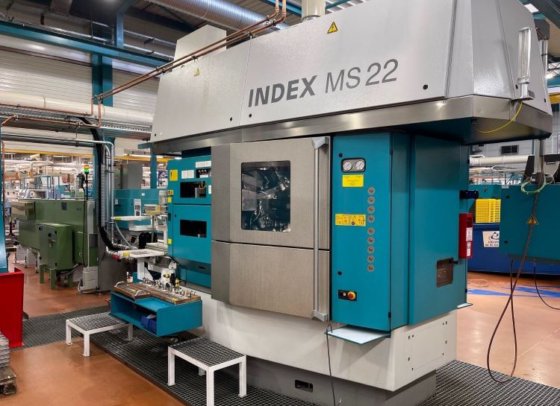

2017 Index MS22-6 in Oak Forest, IL, USA
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Year
- 2017
- Year
- 2017
- Control
- Siemens 840D Solution Line
- Bar capacity
- 22 mm
- 6 clamping heads
- HAINBUCH SK22
- Swivel axes
- CS5.2 + CS6.1
- Chuck type
- HAINBUCH Axfix 22
- Prepared for driven axes
- 1 x NCU1 and 1 x NCU2
- Category
- CNC Lathes in USA
- Subcategory
- Multi-spindle
- Listing ID
- 105809881
Description
INDEX MS22-6
Year of Manufacture: 2017
Control: Siemens 840D Solution Line
Dual NCU (2 x NCU)
ARTIS NCU1 + NCU2
Spindle Configuration:
6 Spindles
Bar Capacity: 22 mm
C-axis on all 6 spindles
6 Clamping Heads: HAINBUCH SK22
2 Synchronous Spindles (Positions 5.2 and 6.1)
Swivel Axes: CS5.2 + CS6.1
Chuck Type: HAINBUCH Axfix 22
Linear Axes:
XZ 1.1 NC, XZ 1.2 NC
XZ 2.1 NC, XZ 2.2 NC
XZ 3.1 NC, XZ 3.2 NC
XZ 4.1 NC, XZ 4.2 NC
XZ 5.1 NC, Z 5.2 NC, X 5.3 NC
Z 6.1 NC, XZ 6.2 NC, X 6.3 NC
Drive & Automation:
Prepared for Driven Axes: 1 x NCU1 and 1 x NCU2
Additional Equipment:
IEMCA PRA Bar Loader
Stock Reel
Chip Conveyor
ARTIS Monitoring System
2 Additional Electronic Shaft Preparations

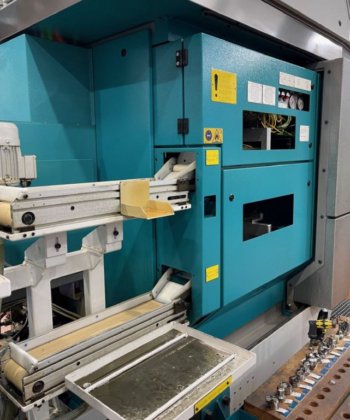

2 Parts Catchers with Conveyor Belt
Bar Scrap Recuperator
Index Bar Guide
Bar Feeder Predisposition
Fire Protection System
