2010 Shanklin Shanklin model S24B Shrink Wrapping Machine, with Shanklin T-6H Shrink Tunnel in Calgary, Alberta, Canada
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Year
- 2010
- Stock number
- 558
- Subcategory
- Processing
- Listing ID
- 105695645
Description
Shanklin model S24B Shrink Wrapping Machine, with Shanklin T-6H Shrink Tunnel + Power roller
A little info from the manufacturer’s website
The Shanklin Model S24B/S24BL L-Frame Sealer is high production semi-automatic Shrink wrapping machine. Features of the machine include a 3-point sealing arm suspension with air-magnetic latching, fool-proof arm safety, a precisely controlled heat sealing cycle and a timer-controlled dis- charge conveyor. Electrical relays are mounted on a U.L. listed panel located behind the easy-to-reach control panel which provides accurate heat for consistent seal. For opera- tor convenience, the unit is equipped with telescoping legs
Special features - Power Film unwind, Brush Backed Pin Perforator, Film Inverting Head, One piece Hot Knife
- Sealer Size - 15’’ Wide X 33’’ Long
- Machine Height - Adjustable from 31’’ to 43’'
- Floor space - 4 1/2’ X 7’
- Package Speeds - 20 to 30 Packages/Min
- Power - 220V, 20 Amps, 1 Phase (U.L. Listed Control Panel)
- Compressed Air - 0.5 C.F.M at 50 P.S.I
- Mechanical adjustments - Discharge Conveyor Height, Packing table and inverting head depth, Packing Guide Position, Film Roll Guides, Machine Height
- Electric Controls - seal and open switches, dwell timer, Conveyor timer, Power Unwind Reverse Switch
- Pneumatic Controls - Flow Control Valves on Sealing Arm, Air Filter, Lubricator, Regulator, Gauge
- Safety Features - Automatic Force Sensor and Switches on Seal Jaw provide redundant safety benefits in the event resistance were encountered during closing and prior to locking

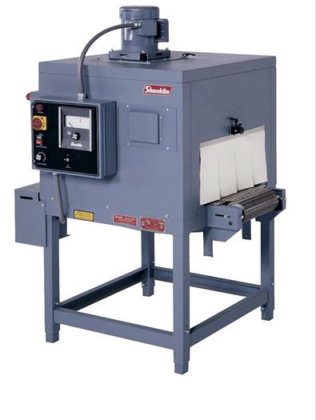

T -6H Shrink Tunnel
Set temperature, Conveyor Speed and variable air velocity control. Features larger tunnel opening height to accommodate higher profile packages
- Tunnel passage- 10’’ high x 18’’ wide x 30’’ long
- Overall dimensions- 67’’ high x 34 1/2’’ wide x 57’’ long
- Conveyor height- 28’’ minimum 40’’ maximum
- Conveyor speeds - Variable from 15 to 66 feet per minute
- Blower Motor 3/4 hp/1Ph single phase capacitor start
- Power - 230 Volts / 1 Phase / 38 Amps

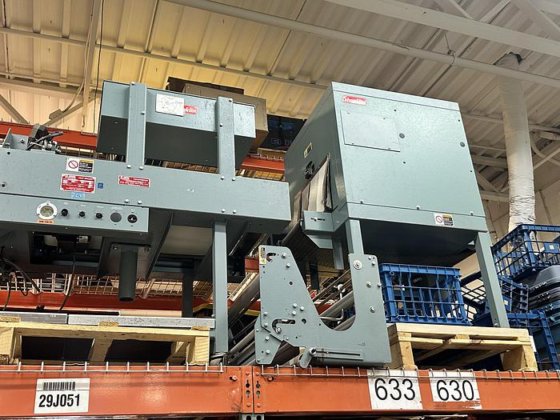

First 2 pictures are stock images the second 2 images are of the items on our racking
If you understand these machines, you will understand this is a very very aggressive price. The heat tunnel alone as a "refurb" from Shanklin is a little over $40k CDN
$4,343 USD
