Large Format Automatic Bagging Machine for Brochures, Certificates, and Document Packaging in Shanghai, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- After-sales service
- Video Technical Support, Online Support
- Automatic grade
- Automatic
- Application
- Brochures, Certificates, and Document Packaging
- Forming species
- Bag Moulding
- Forming function
- Forming, Filling, Seal
- Material type
- Solid
- Packaging
- Bag
- Packaging material
- Film
- Max. speed
- 20-40 bag/min
- Max. size of packing
- 380×580 mm
- Min. size of packing
- 230×320 mm
- Thickness of packing
- 20 mm
- Transport package
- Wooden Case
- Specification
- 5800× 3500× 1650 mm
- Category
- Packaging Machinery in China
- Subcategory
- Packing machinery
- Subcategory 2
- Packaging & printing
- Subcategory 3
- Multi-function packing machine
- Listing ID
- 105151370
Description
Product Description

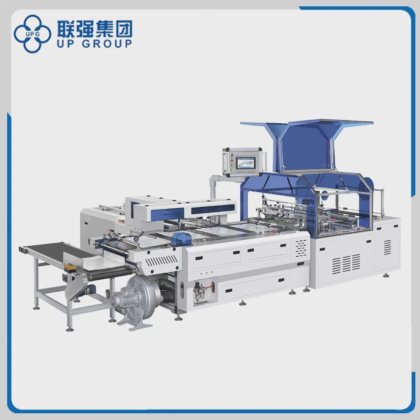

This machine is a dedicated packing device used for products such as certificate of honor, comic book, document bag, envelope, brochure notebook and other heterogeneous product. This machine has functions such as folding, bag making, counting, trimming, gilding, labeling, sticking adhesive label, bagging, hot sealing and cutting and so on.
The overall operation is controlled by a modem motion module controller with a multi-axis servo PLC system. This allows the PLC to memorize specifications and size data, making data adjustments easy and convenient. The structure is simple and reasonable, ensuring accurate and fast positioning, with automatic conveying and counting of finished products.
1. Collation: Equipped with a built-in collation function, this machine allows multiple products to be packaged into a single bag. It can be configured in accordance with the customer requirements to achieve the desired collation effect.
2.
