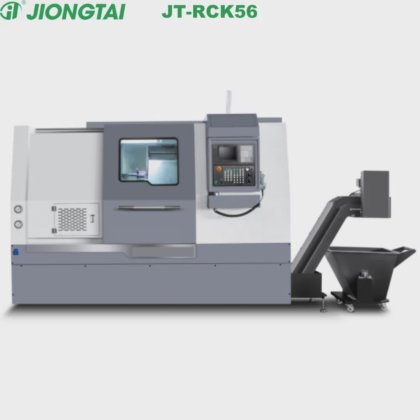

Rck56 High-Precision CNC Lathe with Encoder in Zhejiang, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- After-sales service
- 1 Year
- Application
- Metal
- Process usage
- Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
- Movement method
- Point to Point Control
- Control method
- Closed-Loop Control
- Numerical control
- CNC/MNC
- Processing precision
- 0.01~0.02(mm)
- Performance classification
- Economical CNC Machine Tools
- Certification
- CE, ISO 9001

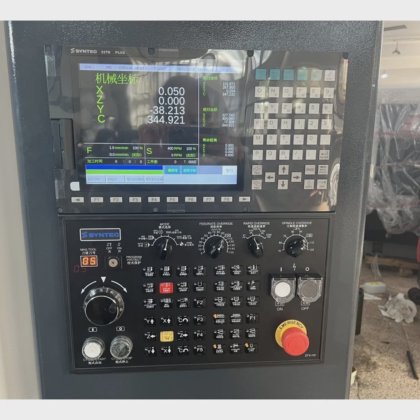

- Cnc system
- GSK
- Optional cnc system
- Fanuc, Mitsubishi M80, Siemens, Knd, Nanjing Kt

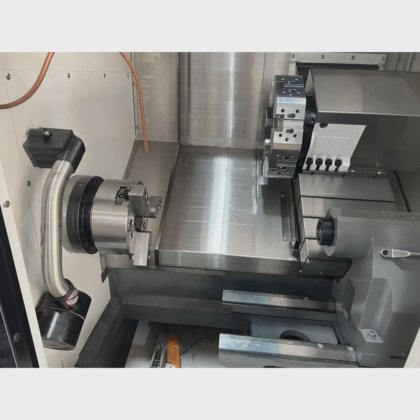

- Standard chuck
- Maunal Chuck
- Optional chuck
- Hydraulic Chuck
- Transport package
- Seaworthy Packing
- Specification
- 3200*1800*2200mm
- Hs code
- 84589100
- Production capacity
- 1500sets/Year
- Category
- CNC Lathes in China
- Subcategory
- Machine tools
- Subcategory 2
- Cnc machine tools
- Subcategory 3
- Manufacturing & processing machinery
- Listing ID
- 104804814
Description
Product Parameters
Main Technical Parameters of the Machine
Item
unit
parameter
Maximum Swing Diameter over Bed
mm
Ф 550
Maximum Swing Diameter over Slide
mm
Ф 380
Maximum Machining Length
mm
600
Spindle Nose Type
GB59001
A2-6
Spindle Bore Diameter
mm
Ф 65
Bar Capacity
mm
Ф 52
Spindle Speed
rpm
50- 4000
Spindle Power (Permanent Magnet)
kw
22
X-axis Travel
mm
330
Z-axis Travel
mm
600
Y-axis Travel
mm
100
A-axis Travel (Tailstock)
mm
500
Bed Type
Oblique
45 degrees
X/Z Rapid Traverse Speed
m/min
20 / 20

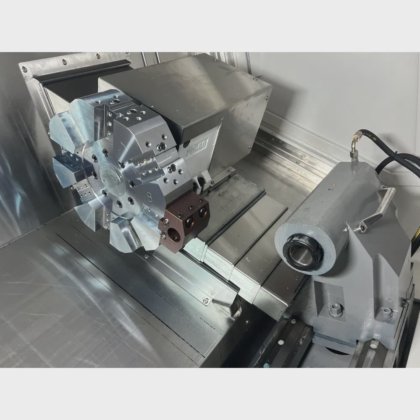

Turret Type
Servo turret BMT45-12
Tool Size
mm
20 * 20
Machine Weight
ton
5.5
Overall Dimensions (L*W*H)
mm
3200*1800*2200
Main Configuration List of the Machine
No.
name
Model/Specification
