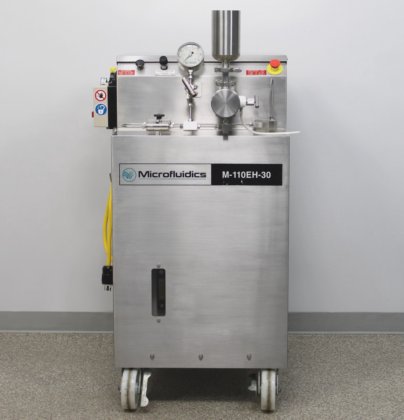

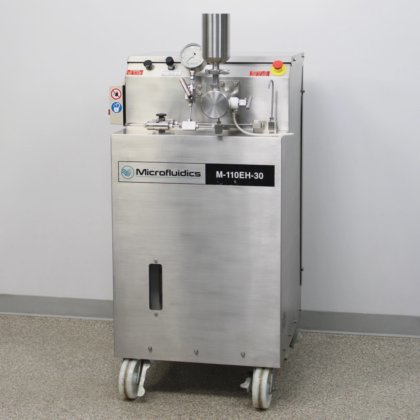

Microfluidics M110EH30K Electric-Hydraulic Microfluidizer Processor Homogenizer in Cridersville, OH, USA
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Year
- 2012
- Serial number
- 2012109
- Mpn
- M110EH30K
- Intended use/discipline
- Biological Laboratory, Medical Laboratory, Microbiological Laboratory
- Model no.
- M110EH30K
- Pressure range
- up to 2068 bar (30,000 psi)
- Flow rate
- up to 330 mL/min @ 2068 bar (30,000 psi) up to 450 mL/min @ 1725 bar (25,000 psi)
- Feed temperature max.
- 75°C (165°F)
- Holdup volume
- 100 mL

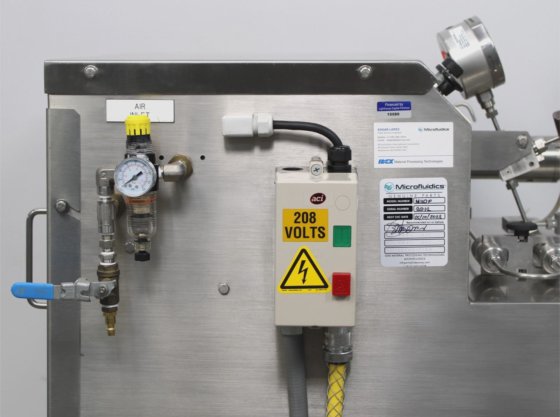

- Compressed air
- 1 SCFM @ 3.4 bar (50 psi) with -18 to 37°C (0 to -35°F) max. dewpoint
- Hydraulic oil heat exchanger cooling water
- 9.5 lpm (2.5 gpm) minimum @ 29°C (85°F) max
- Product outlet heat exchanger cooling water
- 18.9 lpm (5 gpm) @ 16°C (65°F)
- Minimum sample size
- 120 mL
- Power rating
- 3 phase 60 Hz service, 208/230/460V, 3.7 KW (5 HP) (50 Hz European standard available)
- Dimensions
- 33 x 34 x 58 in (84 x 87 x 148 cm)
- Weight
- 450 lb (205 kg)
- Category
- Homogenizers in USA
- Subcategory
- Medical & lab equipment
- Subcategory 2
- Healthcare, lab & dental
- Subcategory 3
- Medical & lab equipment, devices
- Listing ID
- 104310831
Description
“Tested and working Microfluidics M110EH30K microfluidizer processor with diamond interaction chamber, ceramic interaction chamber, 1 liter reservoir, internal product heat exchanger, product pressure gauge, and attached power cable, backed by 90-day warranty.”
You Will Receive:

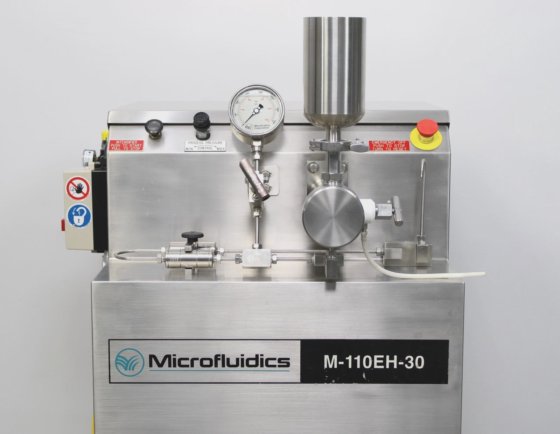

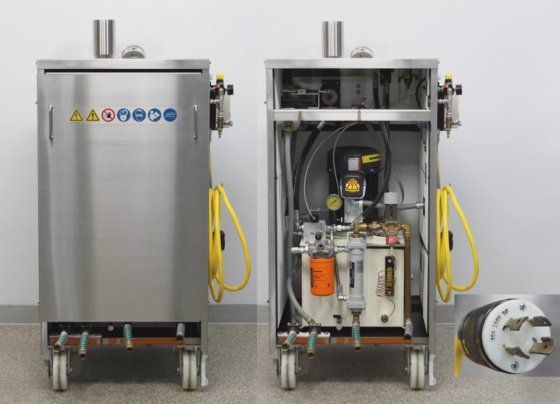

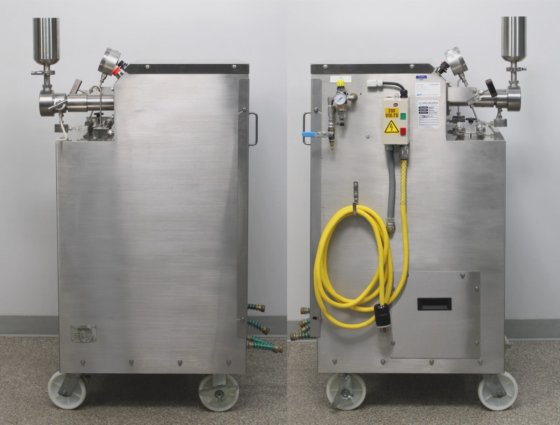

- Microfluidics M110EH30K Microfluidizer Processor

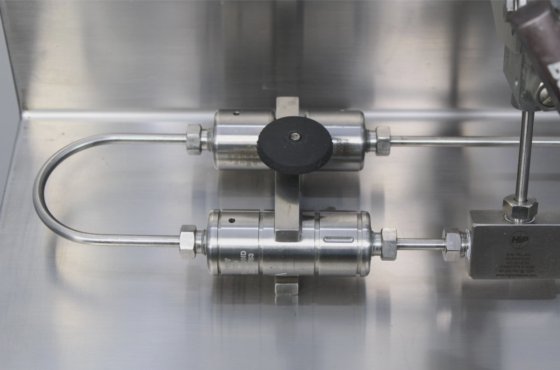

- F12Y 75 Micron Diamond Interaction Chamber (IXC)
- H30Z 200 Micron Ceramic Auxiliary Processing Module (APM)

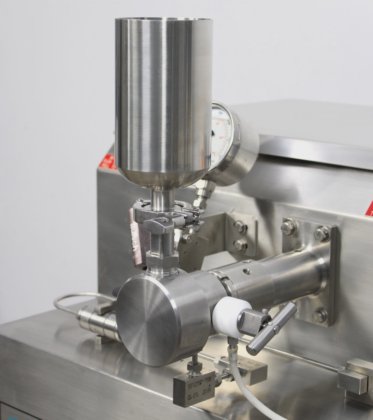

- 1 Liter Stainless Steel Reservoir
- Internal Product Heat Exchanger

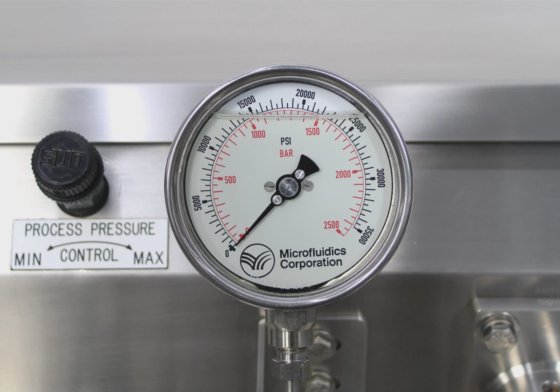

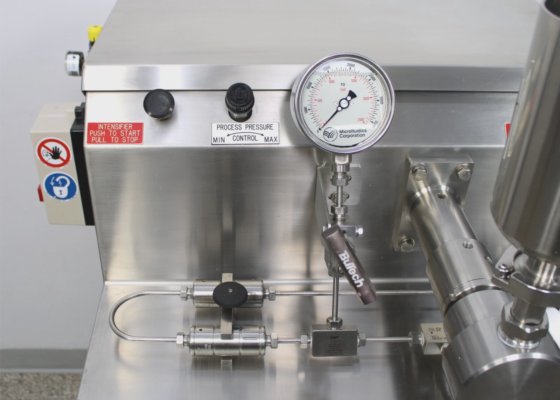

- Product Pressure Gauge with Shut-Off Valve
- Attached Power Cable
- 90-Day Warranty
Fully Tested and Working Without Issue:

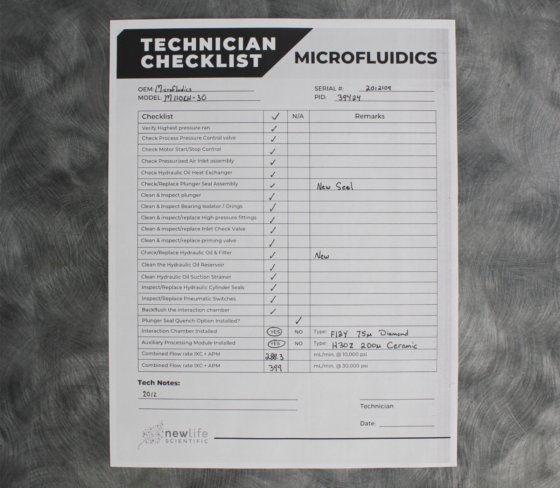

After its initial disinfection and inspection, our technicians tested the Microfluidics M110EH30K microfluidizer processor with the following results:
- Tested and sterilized with isopropyl alcohol:
PASSED
Notable Service Performed:
- Replaced plunger seal.

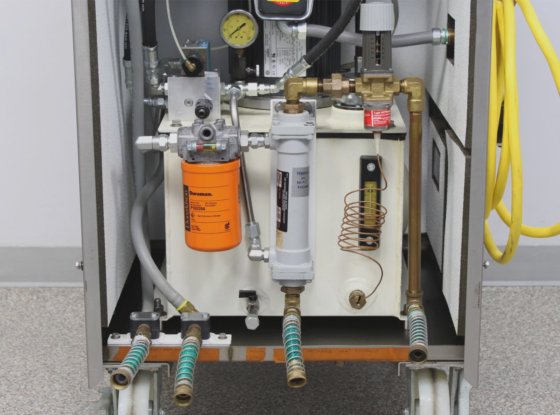

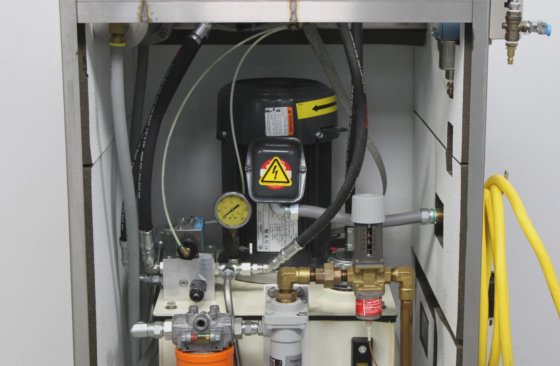

- Changed hydraulic oil and filter.
Notice:
This processor has some minor cosmetic blemishes.
$59,735 USD
