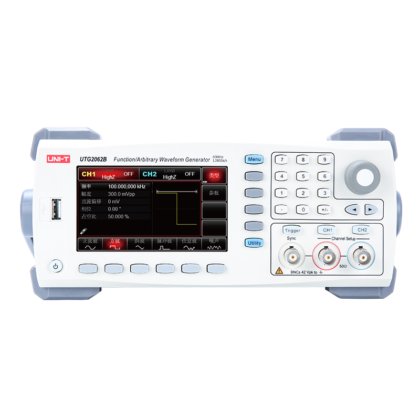

UTG2000B Series Function/Arbitrary Waveform Generator (UTG2122B/UTG2062B) (discontinued) in Beijing, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Dual channels can be used separately or simultaneously
- Internal/external modulation, internal/external/manual trigger
- 4.3-inch high-resolution tft color lcd display standard configuration interface
- USB Host, USB Device, LAN, independent 10MHz clock source input and output
- Category
- Test Generators in China
- Subcategory
- Signal source
- Subcategory 2
- Electronic equipment
- Subcategory 3
- Arbitrary waveform generator
- Listing ID
- 104132267
Description
Introduction:
UTG2000B series function/arbitrary waveform generator (UTG2122B frequency 120MHz/UTG2062B frequency 60MHz two models) dual channel, 1.28GS/s sampling rate, 16bit vertical resolution, generate sine/square wave/pulse/ramp wave/noise/DC/harmonic/arbitrary wave (built-in 200 types), 7-bit hardware frequency counter
Product Introduction:
UTG2000B series function/arbitrary waveform generator, using DDS direct digital frequency synthesis technology, can generate high-precision, stable, pure, low-distortion signals, and can also provide high-frequency square waves with fast rising and falling edges. It is an economical, high-performance, multi-functional dual-channel function/arbitrary waveform generator. The convenient operation interface, superior technical indicators and user-friendly graphic display style can help you complete your work tasks faster and improve your work efficiency. It is a multi-purpose device that meets your current and future testing needs.
Main features:
Standard dual-channel with equal performance and independent channel output mode
Sampling rate 1.28GSa/s (320MSa/s, 4x interpolation), 16bits vertical resolution
120MHz/80MHz/60MHz sine wave output, 1μHz resolution for the whole frequency band
Independent high-frequency and fast-edge square wave channels, 30MHz/25MHz/25MHz square wave output, edge time can be as small as 11ns, duty cycle adjustable
30MHz/25MHz/25MHz pulse waveform output, wide dynamic high-precision rising and falling edge adjustable time, duty cycle adjustable
Can output 2nd to 16th harmonics with independently adjustable phase and amplitude
Can support expressions of 18 mixed functions, with a maximum expression length of 160 characters
Can output any 8pts to 16Mpts Waveform, and supports point-by-point output, 200 groups of non-volatile digital arbitrary waveform storage
Can store 7GB (optional) or 20MB of arbitrary waveform files (.bsv or .csv) and instrument status files
Can read arbitrary waveform files (.bsv or .csv) and instrument status files in USB flash drives
Rich modulation types: AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, OSK, SUM, DSBAM, QAM, PWM
Support frequency scanning and pulse train output
Compatible with 7-bit high-precision frequency counters for TTL level signals
Powerful host computer software and arbitrary waveform editor software
Easy-to-use multi-function knobs and numeric keyboards
