T35 CNC Machine Tool CNC Machine Tool High Precision Lathe in Zhejiang, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- After-sales service
- 1 Year
- Application
- Metal
- Process usage
- Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
- Movement method
- Point to Point Control
- Control method
- Closed-Loop Control
- Numerical control
- CNC/MNC
- Processing precision
- 0.01~0.02(mm)
- Performance classification
- Economical CNC Machine Tools
- Certification
- CE
- Optional cnc system
- Fanuc, Mitsubishi M80, Siemens, Knd, Nanjing Kt
- Maximum swing over bed
- 420mm
- Maximum workpiece length
- 400mm
- Maximum swing over saddle
- 300mm
- Spindle speed range
- 100-3000rpm/0-4000rpm
- Spindle bore diameter
- 48mm/56mm
- Spindle nose type
- A2-5
- Chuck size
- Spring Collet
- Clamping method
- Hydraulic Clamping
- Guideways and ball screws
- Linear Guideway
- X-axis travel
- 800mm
- Z-axis travel
- 420mm
- X/z-axis rapid traverse speed
- 24/24m/Min
- Tool post type
- Gang Tool Post
- Transport package
- Seaworthy Packing
- Specification
- 2100*1390*1875mm
- Hs code
- 84589100
- Production capacity
- 1500sets/Year
- Category
- Lathes in China
- Subcategory
- Machine tools
- Subcategory 2
- Cnc machine tools
- Subcategory 3
- Manufacturing & processing machinery
- Listing ID
- 104086931
Description

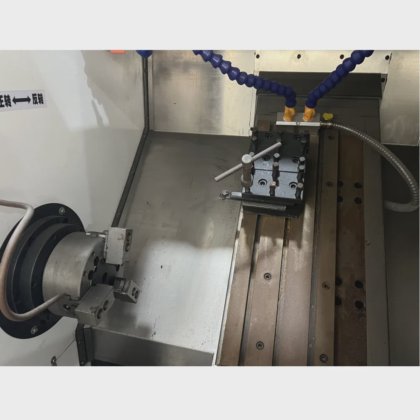

Actual machine photo
Product Parameters

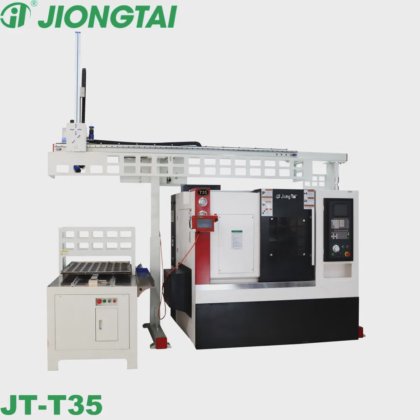

T35 CNC Lathe - High Precision Compact Turning Solution
The T35 CNC lathe is a compact, high-efficiency turning machine designed for precision machining of small to medium-sized components. With a maximum swing over bed of 420mm and a workpiece length capacity of 400mm, it is ideal for a wide range of applications in automotive, aerospace, electronics, and general manufacturing industries.
Key Features:
Machining Capacity:
Max. Swing Over Bed: 420mm
Max. Swing Over Saddle: 300mm
Max. Workpiece Length: 400mm
Spindle System:
Spindle Speed: 100-3000rpm / 0-4000rpm
Spindle Bore: 48mm / 56mm
Spindle Nose: A2-5

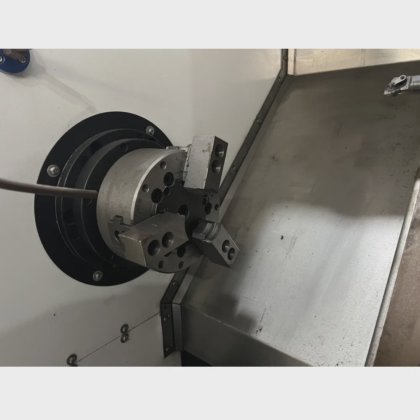

Chuck: Spring collet
Clamping: Hydraulic
Feed Axes:
Travel (X/Z): 800mm / 420mm
Rapid Traverse Speed: 24m/min (X/Z)
Guideway: Linear
Tooling System:

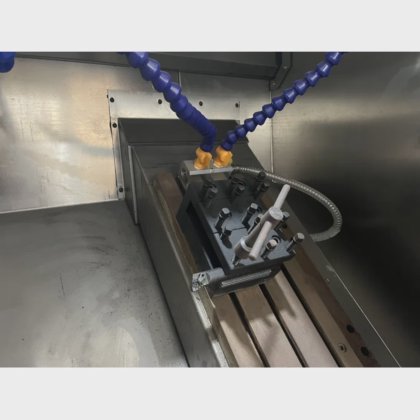

Gang Tool Post with 4 Stations
Tool Holder Size: 20×20mm
Motor & Power:
Main Spindle Motor: 7.5KW Servo Motor
Machine Dimensions & Weight:
Overall Size: 2100×1390×1875mm
Net Weight: Approx. 1500kg
