Multi-Function T46 CNC Lathe Machine for Efficient Metal Cutting in Zhejiang, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- After-sales service
- 1 Year
- Application
- Metal
- Process usage
- CNC Non-Conventional Machine Tools
- Movement method
- Point to Point Control
- Control method
- Closed-Loop Control
- Numerical control
- CNC/MNC
- Processing precision
- 0.01~0.02(mm)
- Performance classification
- Economical CNC Machine Tools
- Certification
- CE
- Max swing over bed
- 460 mm
- Max workpiece length
- 400 mm
- Max swing over carriage
- 170 mm
- Spindle speed range
- 50–3500 Rpm
- Spindle through hole
- 61 mm
- Spindle nose
- A2-6
- Chuck size
- 6" Hydraulic Chuck
- Guideway type
- Linear Guideway
- X-axis / z-axis travel
- 300 mm / 560 mm
- Tool post type / tool holder size
- Gang Tool Post / 4
- Standard system
- GSK CNC System + GSK Driver & Motor
- Optional systems
- Syntec / Fanuc / Mitsubishi / Siemens
- Transport package
- Seaworthy Packing
- Specification
- 2800*1700*1750mm
- Hs code
- 84589100
- Production capacity
- 1500 Sets/Year
- Category
- CNC Lathes in China
- Subcategory
- Machine tools
- Subcategory 2
- Cnc machine tools
- Subcategory 3
- Manufacturing & processing machinery
- Listing ID
- 104086199
Description
Product Description

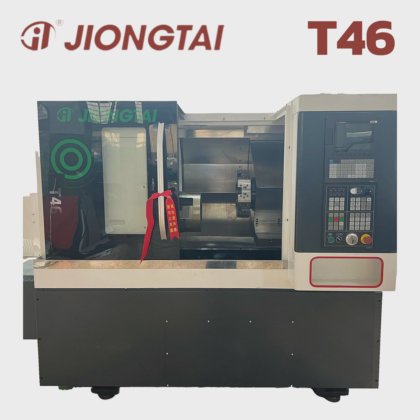

T46 CNC Slant-Bed Lathe
The
T46 CNC slant-bed lathe
is designed for high-precision, high-efficiency machining. Its
integrated cast iron bed with 45° slant guideways
delivers exceptional rigidity, thermal stability, and vibration damping-ensuring consistent machining accuracy and excellent surface finish.
Powered by a
5.5kW AC servo motor
, the spindle adopts a
V-belt direct drive design
for smoother rotation and lower noise. The
high-precision spindle
is supported by
box-type structure
and
high-speed angular contact bearings
, allowing for stable performance even under high-speed or heavy-load conditions.
Equipped with a
4-position gang tool post

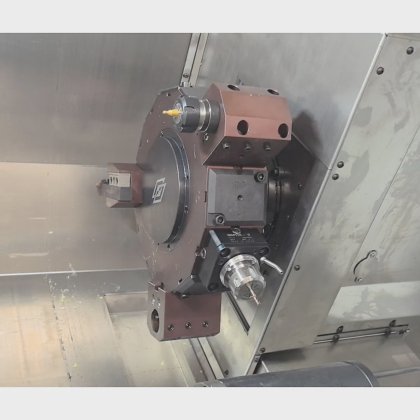

(optional hydraulic servo turret available), the T46 enables
multi-process machining
, including turning, threading, grooving, drilling, and even milling when paired with live tools. It supports both
linear and circular interpolation
