Vmc1580 CNC Vertical Machining CNC Lathe with Automatic Tool Changer in Zhejiang, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- After-sales service
- 1 Year
- Application
- Metal
- Process usage
- Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
- Movement method
- Point to Point Control
- Control method
- Closed-Loop Control
- Numerical control
- CNC/MNC
- Processing precision
- 0.01~0.02(mm)
- Performance classification
- High-End CNC Machine Tools
- Certification
- CE
- Worktable size(l*w)
- 1700*810
- Spindle power
- 15kw
- Miaximum speed
- 6000rpm
- Tool magazine capacity
- 24t
- Transport package
- Seaworth Packing
- Specification
- 4220*2850*3125
- Hs code
- 8458110090
- Production capacity
- 1500 Sets/Year
- Category
- CNC Lathes in China
- Subcategory
- Machine tools
- Subcategory 2
- Cnc machine tools
- Subcategory 3
- Manufacturing & processing machinery
- Listing ID
- 104086015
Description
Product Description

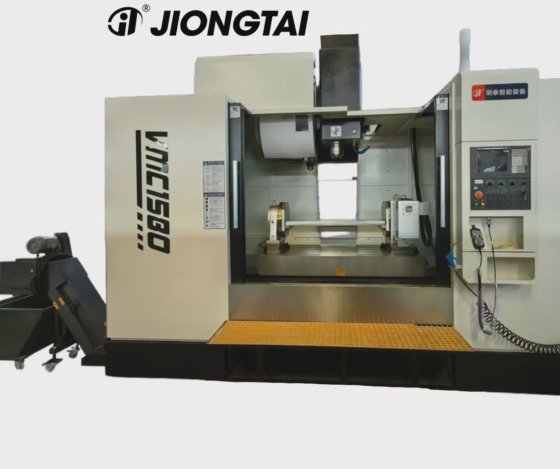

The VMC1580 is a high-performance and high-rigidity three-axis vertical machining center, widely used in mold manufacturing, mechanical parts processing, automotive parts, aerospace and various precision parts batch and single-piece production. Its powerful cutting capacity, stable structural design and advanced automation functions provide users with outstanding processing efficiency and excellent surface quality.
Product Parameters
Model
Specification
JT-VMC1580
Worktable size(L*W)
mm
1700*810
T-slot (Quantity* Width * Pitch)
mm
5*18*147.5
Travel (X/Y/Z axes)
mm
1500*800*800
Distance from spindle nose to worktable surface
mm
85-885
Spindle taper
BT50 belt type
Spindle power
kw
15
Miaximum speed
rpm
6000
Rapid traverse speed (X/Y/Z)
m/min
24/24*11
X/Y/Z axis ball screwv
5512/5010/5010
X/Y/Z axis guide rail type
