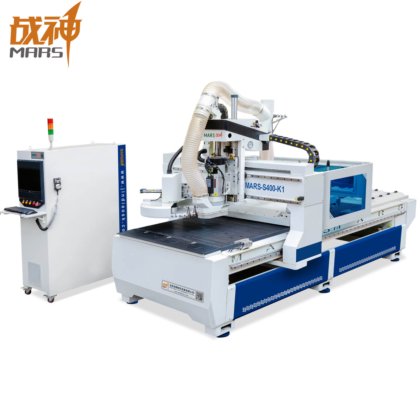

Mars-High Precision CNC Router Machine with Laser Marking Function Color Plates Process Machine CNC Cutting Machine Heavy Duty High Speed in Anhui, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Certification
- ISO, CE, Patent Certification
- Cnc or not
- CNC
- Voltage
- 380V
- Configuration
- 9kw Air Cooling Spindle
- Transport package
- Wrapped in Layers of Wrapping Film and Ponchos
- Specification
- 1230*2450*200mm
- Hs code
- 8465990000
- Production capacity
- 3000 Sets/Year
- Machine size
- 3700*2300*2400mm
- Table structure
- Double vacuum chamber absorption table
- Drive system
- Taiwan AC servo motor
- Spindle motor power
- 9KW air cooling ATC spindle; 0 ~ 24000 rpm/min
- Lubrication system
- Automatic
- Limit switch
- Japan Omron, Mechanical touch
- Vacuum pump
- 1*7.5KW vacuum pump
- Positioning cylinder
- 6pcs, with automatic loading and unloading system
- Beam
- Reinforced steel beam
- Travelling speed
- 48/60/15
- Max processing speed
- 30m/min
- Working accuracy
- ±0.02mm
- Re-positioning accuracy
- ±0.08mm
- Dictate format
- G-Code / HPGL
- Working voltage
- AC380V/ 3PH/ 50HZ
- Net weight
- 3000KG
- Category
- Laser Cutters in China
- Subcategory
- Woodworking machinery
- Subcategory 2
- Woodworking engraving machine
- Subcategory 3
- Manufacturing & processing machinery
- Listing ID
- 103572511
Description
New Product! High Precision CNC Machine with Laser Marking Function
Keywords:
15 years experience of production
ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
Three Brand: Mars, Golden Eagle,Borio
New Product! High Precision CNC Machine with Laser Marking Function is MARS featured machine for processing molded doors, wooden windows, wooden cabinet, wood panels. MARS design it for many years, now popular in the market, it's economic machining center of woodworking cutting machine.
Functions:
The functions of this machine include milling on artificial stone,wood,bamboo,etc.,processing of various patterns and characters.
Applicable Materials:
Artificial stone,wood,bamboo,marble,organic board,two-color board,etc..
Application Scope:
Cabinet doors,wooden doors,solid wood,panels,doors&windows,tables &chairs,screens,wave panels,large wall hangings,advertising panels,logo&sign making.
Parameters:
Basic, X/Y/Z Axis Working Area, 1230*2450*200mm
$32,999 USD
