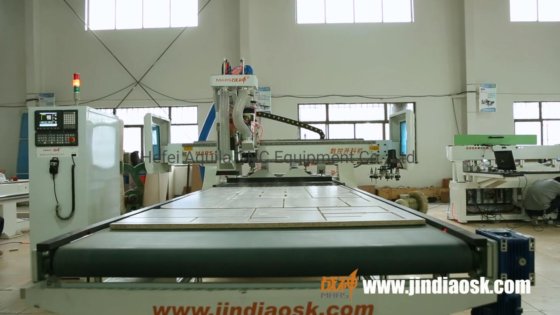

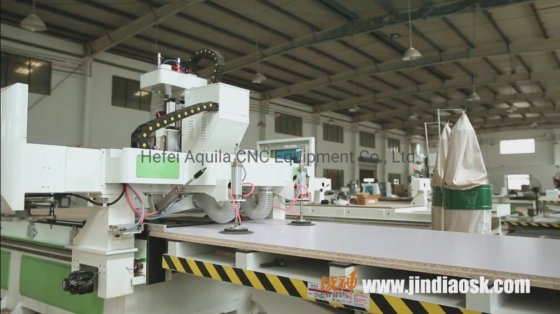

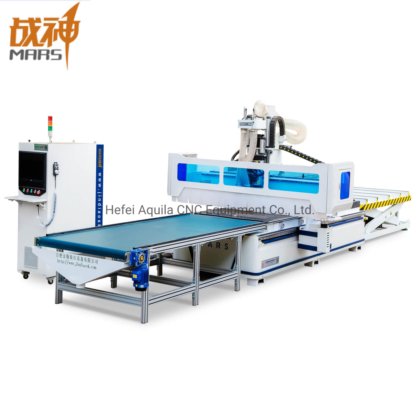

S300 CNC Machining Center (Disc Type ATC Tool Change+Drilling Bank) Automatic Loading and Unloading CNC Machine in Anhui, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Certification
- ISO, CE, Ce, ISO 9001, Patent Certification
- Cnc or not
- CNC
- Voltage
- 380V
- Application
- Wood
- Process usage
- CNC Non-Conventional Machine Tools
- Movement method
- Contour Control
- Control method
- Closed-Loop Control
- Numerical control
- CNC
- Processing precision
- 0.01~0.02(mm)
- Performance classification
- MID-Range CNC Machine Tools
- Transport package
- Wrapped in Layers of Wrapping Film and Ponchos
- Specification
- Working Area: 1300x2500*200mm
- Hs code
- 8465990000
- Production capacity
- 3000 Sets/Year
- Machine size
- 3700*3100*1900mm
- Table structure
- Double vacuum chamber absorption table
- Body structure
- Heavy-duty thicken steel structure w/ tempering
- Drive system
- Japan Yaskawa servo motor
- Spindle motor power
- HSD 9KW air cooling spindle; 0 ~ 24000 rpm/min
- Drilling head
- Italy HSD 5+4 gang drill
- Lubrication system
- Automatic
- Guide rail
- Taiwan PMI/Hiwin 25mm rectangular linear rail
- Inverter
- Zoncn/Delta/Fuling brand
- Positioning cylinder
- 6pcs
- Tool sensor
- MARS
- Limit switch
- Japan Omron
- Vacuum pump
- 1*5.5KW double leaf vacuum pump
- Beam
- Reinforced steel beam
- Max travelling speed
- 50m/min
- Max processing speed
- 30m/min
- Working accuracy
- ±0.02mm
- Re-positioning accuracy
- ±0.05mm
- Dictate format
- G-Code / HPGL
- Working voltage
- AC380V/ 3PH/ 50HZ
- Net weight
- 3000KG
- Category
- Machining Centers in China
- Subcategory
- Woodworking machinery
- Subcategory 2
- Woodworking engraving machine
- Subcategory 3
- Manufacturing & processing machinery
- Listing ID
- 103572408
Description
S300 CNC Machining Center (Disc Type ATC Tool Change+Drilling Bank) Automatic Loading and Unloading CNC Machine
Keywords:15 years experience of production
ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
Three Brand: Mars, Golden Eagle,Borio
S300 CNC Machining Center (Disc Type ATC Tool Change+Drilling Bank) Automatic Loading and Unloading CNC Machine is MARS featured machine for processing molded doors, wooden windows, wooden cabinet, wood panels. MARS design it for many years, now popular in the market, it's economic machining center of woodworking cutting machine.
Functions:
The functions of this machine include milling on artificial stone,wood,bamboo,etc.,processing of various patterns and characters.
Applicable Materials:
Artificial stone,wood,bamboo,marble,organic board,two-color board,etc..
Application Scope:
Cabinet doors,wooden doors,solid wood,panels,doors&windows,tables &chairs,screens,wave panels,large wall hangings,advertising panels,logo&sign making.
$24,388 USD
