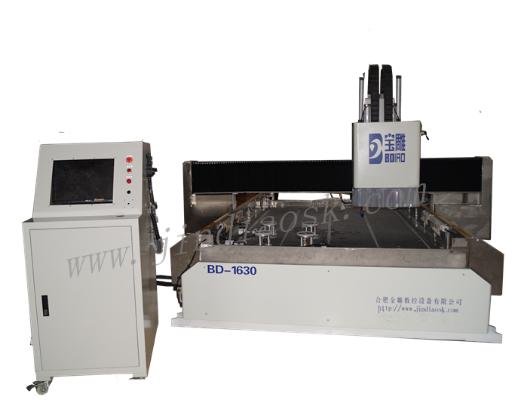

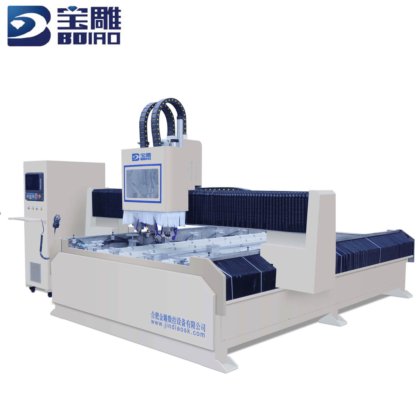

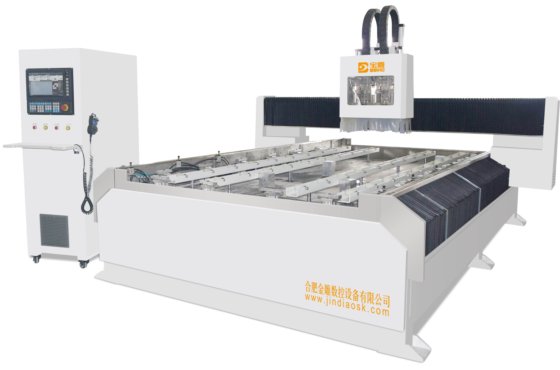

Mars-Stone CNC Router Machine/CNC Carving Machine/CNC Engraving Machine High Precision CNC Machine Intelligent Operation in Anhui, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Function
- Hollow out, Cutting, Line Engraving, Intaglio, Basso-relievo, Lettering
- Application material
- Stone/Marble/Tile/Granite/Tombstone/Sign Plate
- Automation
- Automatic
- Control
- CNC
- Motor power
- High Power
- Engraving head speed adjustability
- Wide Adjustable Range
- Certification
- CE, ISO, SONCAP, CCC
- Current
- AC
- Application
- Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry
- Customized
- Customized
- Driver motor
- Servo Motor
- Configuration
- 5.5kw Air Cooling Spindle
- Performance classification
- High-End CNC Machine Tools
- Transport package
- Wrapped in Layers of Wrapping Film and Ponchos
- Specification
- 1600*3000*240mm
- Hs code
- 8464909000
- Production capacity
- 300sets/Month
- X/y/z axis working area
- 1600*3000*240mm
- Machine structure
- Thick steel welded, with aging treatment
- Control system
- NC Studio NC65C
- Drive motor
- Leadshine servo motor and Stepper driver motor
- Spindle motor power
- 5.5KW+7.5KW water cooled spindle
- Spindle speed
- Adjustable Rotational Speed with 0-24000 rpm/min
- Inverter
- Zoncn (Optional with Fuling)
- Guide rail
- Taiwan imported linear guide rail PMI
- Cooling system
- Circulating water-refluxing design/Round Spray
- Oil system
- Automatic Oil system
- Way of fixing workpiece
- Double-sided sealed vacuum adsorption system
- Suction cup
- 6pcs
- Water and dust resistant
- Intelligent dust proof cooling system
- Hand wheel
- Electric hand wheel
- Profile polishing wheel
- Max diameter 150mm
- Tool type
- BT40, Φ35, Φ30
- Collet/tool holder
- ER32, Φ10, Φ12, Φ12.7, Φ16, Φ20
- Vacuum pump
- 1*7.5KW
- Electric motor
- 7.5KW
- Positioning cylinder
- 6pcs
- Electric appliance
- Germany Schneider
- Reducer
- Planetary reducer
- Working accuracy
- ±0.08mm
- Re-positioning accuracy
- ±0.05mm
- Max. traveling speed
- 25 m/min
- Max.working speed
- 15 m/min
- Water sink/tank
- Powder-painting (Stainless steel is optional)
- Dictate format
- G-Code / HPGL
- Water consumption
- 46L/min
- Air pressure
- 0.8Mpa
- Weight
- 3000KGS
- Working voltage
- AC380V 3PH 50HZ
- Category
- Stone Equipment in China
- Subcategory
- Stone carving machine
- Subcategory 2
- Stone processing machinery
- Subcategory 3
- Cnc stone engraving machine
- Subcategory 4
- Manufacturing & processing machinery
- Listing ID
- 103570379
Description
Stone CNC Router Machine/CNC Carving Machine/CNC Engraving Machine
Keywords:15 years experience of production
ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
Three Brand: Mars, Golden Eagle,Borio
Stone CNC Router Machine/CNC Carving Machine/CNC Engraving Machine is BOIRO featured machine widely used in quartz stone,marble,granite and other materials made of countertop,wash basin,shaped lines,grinding and cutting process.BOIRO design it for many years, now popular in the market, it's economic machining center of stone cutting machine.
Functions:

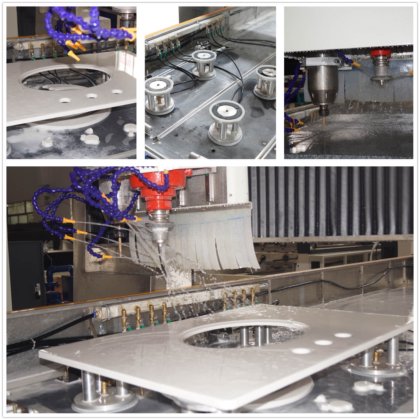

The functions of this machine include 2D sculpture,3D relief,cutting,chamfering,drilling and engraving.
Applicable Materials:
Widely used for marble, jade, granite, tombstones, milestones,ceramic tiles,glass,bluestones and etc..
Application Scope:
$15,880 USD
