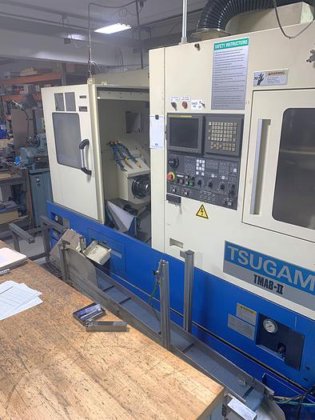

2006 Tsugami TMA8-II Model C Mill-Turn Lathe with Milliing, Y Axis, Pendulum B Axis, Subspindle, Parts Conveyor, Chip Conveyor in New Jersey, USA
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Year
- 2006
- Serial number
- 223
- Stock number
- 120008
- Control
- Fanuc 18i-TB Control
- Chuck sizes main / subspindle
- Collet Chuck / Collet Chuck
- Maximum work diameter
- 8.668"
- Maximum machining length
- 22.852"
- Maximum bar capacity
- 2.56"
- B-axis tilt movement
- 180 Degrees
- B-axis incremental movement
- .001 Degree (also indexable in 90 deg steps)
- C-axis spindle rotation - both spindles
- 0.001 Degrees
- X-axis travel
- 16.94"
- Y-axis travel
- 5.122"
- Z-axis travel
- 24.23" (15.76" + 8.47")
- W-axis subspindle travel
- 26"
- Main spindle nose / bore
- 190 mm / 2.878"
- Main spindle speed / motor
- 5,000 RPM / 25 HP
- Subspindle nose
- 140 mm
- Subspindle speed / motor
- 7,000 RPM / 10 HP
- Rotary tool speed / rotary motor
- 6,000 RPM / 7.4 HP
- Turret spindle type
- KM40
- Number of tool positions
- 60 Station Tool Changer
- Number of turret positions
- 1 Position Turret
- Rapid traverse rates x, y / z
- 945 IPM / 1260 IPM
- Rapid traverse rate b axis subspindle
- 788 IPM
- Machine dimensions
- 146" x 84" x 89"
- Machine weight
- 18,400 lbs.
- Category
- CNC Lathes in USA
- Subcategory
- Cnc lathes 4 axis or more
- Listing ID
- 103417016
Description
7 Axis Capable Mill/Turn Lathe
Y-Axis Capabiliity for off center line work
Pendulum Style B Axis with .001 Degree Increment Option
Full C Axis Spindle Rotation on both Main & Subspindle
Subspindle
Live Milling/Drilling Capability
60 Station Tool Magazine
Tool Pre-Setter
Automatic Parts Catcher
Parts Exit Conveyor System
Chip Conveyor
(2) Microcentric Collet Chucks for Both Main & Sub Spindle
LNS Chip Blaster Model D-30/35 High Pressure Coolant System
Mist Buster Mist Collector
Custom Macro B
1280M Programming Memory
Polar Coordinate Interpretation
Cylindrical Interpolation
Helical Interpolation
Tool Life Management
Broken Tool Device
Main & Sub Spindle Synchronization
Milling Spindle Synchronous Tapping
Overload Detection
3 Color Machine Status Condition Lights
Daikin Chiller Unit
Auto Chuck Jaws Open and Close
Memory Card Interface
RS 232 Port Interface
All Available Tooling
**New Machine As Equipped at over $400,000**
$33,500 USD
