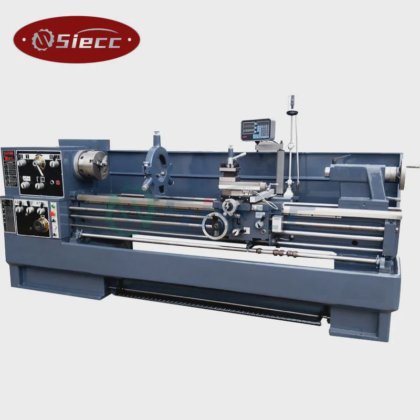

LC410/1000 Lathe Machine From Siecc in Jiangsu, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Processing accessory
- Centre CNC Lathe
- Guide rail
- Horizontal Guide Rail
- Tool holder
- Single-tool Holder CNC Lathe
- Power source
- Electric
- Controlling mode
- CNC
- Automatic grade
- Automatic
- Setting mode
- Floor-type
- Precision
- High Precision
- Certification
- GS, CE, RoHS, ISO 9001
- Transport package
- Container Loaded
- Specification
- HECT
- Production capacity
- 1000 Sets/Year
- Category
- Lathes in China
- Subcategory
- Machine tools
- Subcategory 2
- Manufacturing & processing machinery
- Listing ID
- 103172802
Description
PRODUCT FEATURES
*THE SURFACE OF THE BEDWAYS IS SUPERSONIC FREQUENCY HARDENED.
*GEARS PRECISELY GROUND TO REDUCE NOISE.
*SPINDLE SYSTEM IS OF HIGH RIGIDITY AND PRECISION.
*RAPID FEED STRUCTRUE IS AVAILABLE ON APRON.
*INTEGRAL CASTING BASE CAN BE OPTIONAL.
TECHNICAL PARAMETERS
SPECIFICATION
LC410/1000MM
LC410/1500MM
CAPACITY
Max.swing over bed
410mm
Max.swing over cross slide
230mm
Max.swing over gap
570mm
Effective length of gap
200mm
Center Distance
1000mm
1500mm
Bed Width
360mm
HEADSTOCK
Spindle hole
52mm
Spindle nose
ISO-C6
Spindle taper
MT6
Spindle speed(Number)
(9steps)40-1400rpm
FEEDS AND THREADS
Max.travel of top slide
95mm
Max.travel of cross slide
200mm
Max.size of toolshank
20*20mm2
Longitudinal feeds range
36kinds 0.0832-4.66mm/r
Cross feeds range
36 kinds 0.048-2.69mm/r
