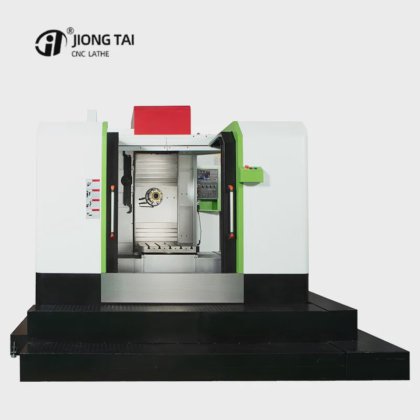

CNC Machine Lathe Precision Lathe Machine Vmc Jt-700HP in Zhejiang, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- After-sales service
- 1 Year
- Application
- Metal
- Process usage
- Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
- Movement method
- Point to Point Control
- Control method
- Closed-Loop Control
- Numerical control
- CNC/MNC
- Processing precision
- 0.01~0.02(mm)
- Performance classification
- High-End CNC Machine Tools
- Precision
- High Precision
- Net weight
- 10000kg
- Tool libranes
- 21 Arm Type Tool Libranes
- Standard system
- Mitsubishi M80
- Transport package
- Seaworthy Packing
- Specification
- 5600*3600*3150mm
- Hs code
- 8458110000
- Production capacity
- 1500sets/Year
- Category
- Lathes in China
- Subcategory
- Machine tools
- Subcategory 2
- Cnc machine tools
- Subcategory 3
- Manufacturing & processing machinery
- Listing ID
- 103108331
Description
Product Parameters
ITEM
UNIT
JT-700HP
Workbench
Workbench size
mm
630*630
Worktable load-bearing capacity
kg
1200
T-slot width (width x spacing x number of slots)
mm
22*125*5
Minimum roatation angle
deg
1
Segmentation accuracy
sec
±6
Repetitive accuracy
sec
±2
Trip
X-axis travel
mm
1080
Y-axis travel
mm
730
Z-axis travel
mm
830
Distance from spindle end face to workbench
mm
180-1010
Distance from spindle center to Z-axis rail surface
mm
120-850
Principal axis
Speed range
rpm
8000
Main spindle power (continuous/30 minute rated)
kw
15/18.5
Spindle torque(rated for continuous/15minutes)
Nm
143/236
Slope of spindle inner hole
BT50
Transmission mode
Belt-type
Feed
X-axis rapid displacement
m/min
20
