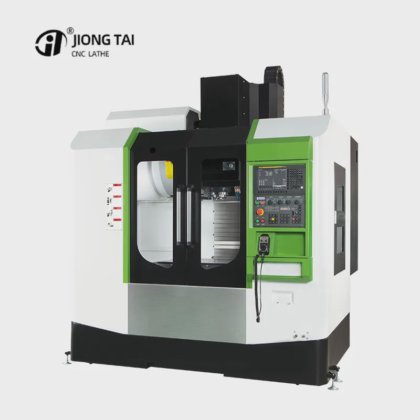

CNC Machine Lathe Precision Lathe Machine Vmc Jt-850s in Zhejiang, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- After-sales service
- 1 Year
- Application
- Metal
- Process usage
- Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
- Movement method
- Point to Point Control
- Control method
- Closed-Loop Control
- Numerical control
- CNC/MNC
- Processing precision
- 0.01~0.02(mm)
- Performance classification
- High-End CNC Machine Tools
- Precision
- High Precision
- Net weight
- 5000kg
- Tool libranes
- 21 Arm Type Tool Libranes
- Standard system
- Mitsubishi M80
- Transport package
- Seaworthy Packing
- Specification
- 2400*2675*2650mm
- Hs code
- 8458110000
- Production capacity
- 1500sets/Year
- Category
- Lathes in China
- Subcategory
- Machine tools
- Subcategory 2
- Cnc machine tools
- Subcategory 3
- Manufacturing & processing machinery
- Listing ID
- 103108308
Description
Product Parameters
ITEM
UNIT
JT-850S
Workbench
Workbench size
mm
1000*1000
Worktable load-bearing capacity
kg
600
T-slot width (width x spacing x number of slots)
mm
18*100*5
Trip
X-axis travel
mm
800
Y-axis travel
mm
520
Z-axis travel
mm
560
Distance from spindle end face to workbench
mm
120-680
Distance from spindle center to Z-axis rail surface
mm
550
Principal axis
Speed range
rpm
12000
Main spindle power (continuous/30 minute rated)
kw
7.5/11
Slope of spindle inner hole
BT40
Transmission mode
Feed
X-axis rapid displacement
m/min
36
Y-axis rapid displacement
m/min
36
Z-axis rapid displacement
m/min
36
Feed rate
mm/min
15000
Automatic tool change system
Tool magazine capacity
set
24
