integrating sphere is a CCD Spectroradiometer Integrating Sphere Compact System for LED Testing integrating sphere in Shanghai, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Customized support
- Color Size
- Place of origin
- Shanghai China
- Spectral range wavelength
- 350nm~950nm
- Spectral wavelength accuracy
- ±0.5nm
- Certification
- ISO
- Wavelength reproducibility
- ±0.5nm
- Sample scanning steps
- ±0.1nm
- Accuracy of chromaticity coordinate
- ±0.003 (under Standard A Lamp)
- Correlated color temperature cct
- 1 500K~25 000K.
- Cct accuracy
- ±0.5%
- Color rendering index range
- 0~100.0
- Accuracy
- ± (0.3%rd±0.3)
- Subcategory
- Test instruments
- Subcategory 2
- Optical instruments
- Subcategory 3
- Testing instrument & equipment
- Listing ID
- 103002835
Description

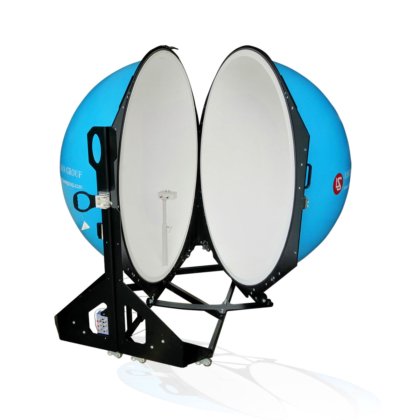

LPCE-3 is a CCD Spectroradiometer Integrating Sphere Compact System for LED Testing. It is suitable for single LED and LED luminaires’ photometric, colorimetric and electrical measurement. The measured data meets the requirements of CIE 177, CIE84, CIE-13.3, COMMISSION DELEGATED REGULATION (EU) 2019/2015, IES LM-79-19, Optical-Engineering-49-3-033602, IESNA LM-63-2, ANSI-C78.377 and GB standards.
The Sphere System Configuration
:
CCD Spectroradiometer (LMS-7000), Optical Fiber (CFO-1.5M), Digital Power Meter (LS2008R), DC Power Source (DC-S Series), AC Power Source (LSP-500VAS), Integrating Sphere (IS-1.5MA-CASE and IS-0.3M), Standard Light Source (SLS-50W and SLS-10W)
Measurement

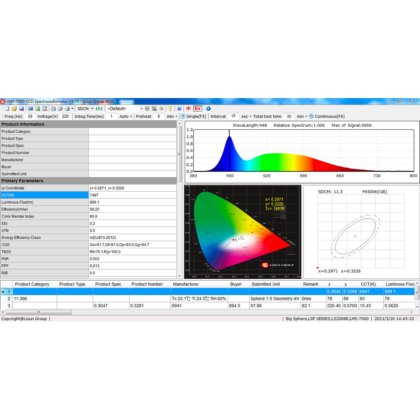

• Colorimetric: Chromaticity coordinates, CCT, Color Ratio, Peak Wavelength, Half Bandwidth, Dominant Wavelength, Color Purity, CRI (Ra, R1 to R15), Spectrum Test, TM30 (Rf, Rg), CQS
• Photometric: Luminous Flux, Luminous Efficiency, Radiant Power, EEI, PAR, PPF
$6,500 USD
