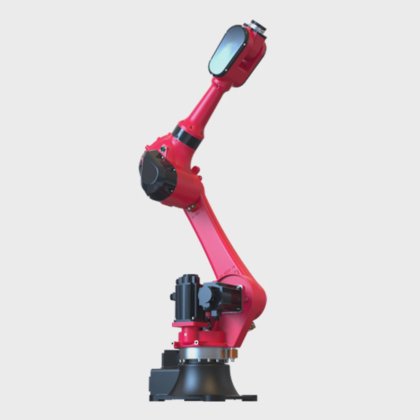

Multifunctional 6-axi robotic arm with high output value replacing manual operation simple programming and high cost in Jining, Shandong, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Machine type
- Welding robot
- Place of origin
- Shandong China
- Weight (kg)
- 400
- Voltage
- 220v
- Current
- 50HZ
- Rated capacity
- 1000w
- Welding mode
- MIG TIG
- Material
- metal
- Max.input power
- 100W
- Application
- Rework BGA
- Function
- Automatic Spot Welding Machine
- Keyword
- Welding Robot China
- Welding material
- Stainless Steel Carbon Metal
- Advantage
- High Welding Speed
- Welding method
- Automation TIG Welding
- Use
- Welding Position Adjusting Equipment
- Axis
- 6-axis
- Category
- Welding equipment in China
- Subcategory
- Commercial equipment & machinery
- Listing ID
- 102406755
Description
Robotic Arm Industrial Industrial Manipulator Machine Robot Arm Industrial Robot Arm Price Servo Motor For Industria
Robot Specifications
Model No.
MR10-1440
Controlled axis
6-DOF
Max payload
10 kg
Max stroke
1440mm
IP Level
J1, J2-IP56; J3, J4, J5, J6-- IP67
Installation mode
Floor type, ceiling type
Robot mass
172 kg
Repeatability
±0.05 mm
Plasma cutting machines
IGBT LGK-120A, Huyuan brand
Travel range
J1 axis S ±160°
J2 axis L +80°~-145°
J3 axis U+145°~-75°
J4 axis R ±190°
J5 axis B +50°~-210°
J6 axis T ±230°
Travel speed
J1 axis S 199.5 ˚/s
J2 axis L 159.3 ˚/s
J3 axis U 199.5 ˚/s
J4 axis R 392 ˚/s
J5 axis B 272 ˚/s
J6 axis T 1000 ˚/s
Electrical cabinet specifications
Dimensions
650*460*580mm
Cabinet Mass
50KG
Cooling method
Natural cooling
IP54
Input power
220VAC 50/60Hz
I/O signal
16-in / 16-out 24VDC; 2 analog output 0~10V
LAN EtherCAT,
TCP/IP
Serial port I/F
RS485*1, RS422*1, RS232*1, CAN*1, USB*1
RAM capacity
JOB 200,000 steps (200MB)
$4,430 USD
