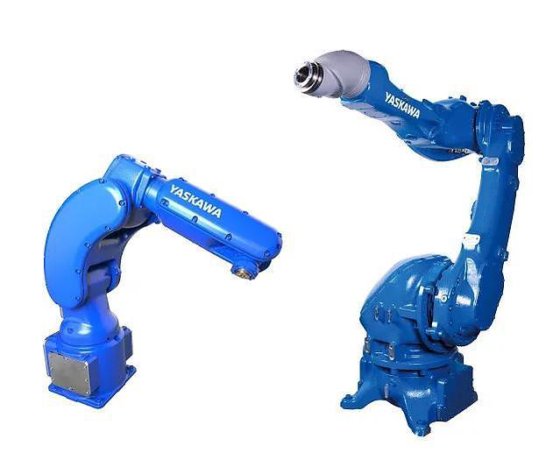

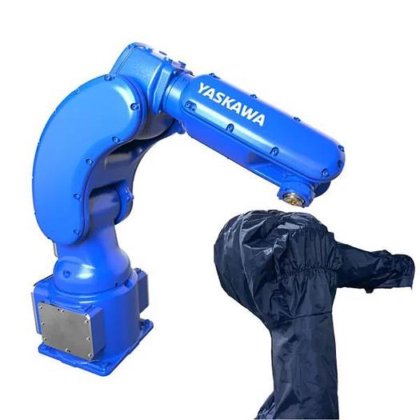

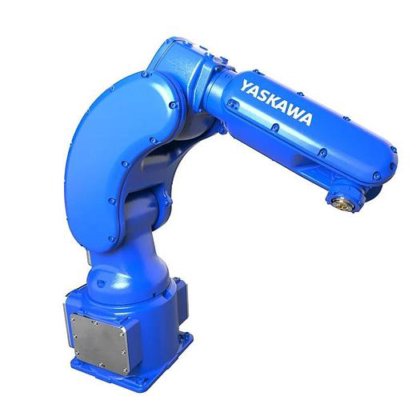

YASKAWA MPX1150 6 Axis High-Speed Compact Painting Robot with DX200-FM Robot Controller and Teach pendant in Shanghai, China

Maximum payload:5kg
Pose repeatability:± 0.02mm
Number of axes:6
Weight:57 kg
MPX1150 Introduction:
The MPX1150 is a high-speed, compact six-axis robot ideal for painting contoured parts such as interior/exterior surfaces.
Its hollow wrist design has an inside diameter of 70 mm, making it well-suited for mounting spray equipment applicators.
Offers superior performance and creates smooth, consistent finish with outstanding efficiency for painting and dispensing applications.
Can be floor, wall or ceiling mounted for layout flexibility.
Features of the DX200-FM paint robot controller coordinates operation of robot and painting devices, including spray gun, color changer and gear pump. It also supports gun control instructions and is compatible with standard networks for connection to paint equipment controllers and production line.
Key Benefits
1. Large global install base backed byYaskawa's experience and reliability.
2. Straight wrist with 5 kg payload capacity.
3. Easy-to-use touch screen teach pendant.
4. MotoSim EG-VRC 2017 (or later) simulation software product (optional)
5 kg wrist payload
727 mm horizontal reach
1 ,290 mm vertical reach
+0.02 mm repeatability
MPX1150
Main Features
· High-speed, compact six-axis MPX1 150 robot is ideal for paintingof smaller components.
· Offers superior performance and creates smooth, consistent finish withoutstanding efficiency for paintingand dispensing applications.
· Wrist payload of 5 kg; well-suited for mounting a variety of spray gunsand small bells.
· Small footprint, slim arm designallows for minimum installation space.
· Reduced interference envelope enables painting of workpieces closer to the robot.
· Optional location (right, left orbottom) for manipulator cable connection reduces interference with walls.
· Factory Mutual approved foruse in Class l, Div. 1 hazardous environments.
· Versatile design can be floor, wall or ceiling mounted for layout flexibility.
· High-speed, compact six-axis MPX1 150 robot is ideal for painting of smaller components.
DX200-FM Robot Controller
. Includes application-specific software for paint applications.
. Supports paint hardware configurations including: trigger delays, air calibrations and valve timing programs.
. Accommodates paint control instructions such as spray start/stop and painting condition files.
. Supports standard networks(such as EtherNet, EtherNet IP, CC-Link, and DeviceNet), enablingconnection to paint equipmentcontrollers and production linecontrollers.
. Intrinsically safe pendant (optional).
. The DX200-FM is available with Category 3 Performance Level d (PLd)Functional Safety Unit (FSU), whichsupports safety-rated speed control,safety-rated soft axis and spacelimiting, and safety-rated monitorstop. In addition to enabling safeoperation in smaller spray boothswith adjacent manual operations,these safety functions can be utilized to save costs and reduce floorspace requirements
.
NX200-FM Controller
1. Includes application-specific software for paint applications.
2. Supports paint hardware configurations including: triggerdelays, air calibrations and valve timing programs.
3. Accommodates paint control instructions such as spray start/stop and painting
condition files.
4. Supports standard networks (such as EtherNet, EtherNet IP, CC-Link,and
DeviceNet), enabling connectionto paint equipment controllers andproduction line
controllers.
5. Intrinsically safe pendant (optional).
6. The DX200-FM is available with Category 3 Performance Level d (PLd)Functional Safety Unit (FSU), whichsupports safety-rated speed control,safety-rated soft axis and spacelimiting, and safety-rated monitorstop. In addition to enabling safeoperation in smaller spray boothswith adjacent manual operations,these safety functions can be
utilized to save costs and reducefloorspace requirements.
YASKAWA MPX1150 Painting robot Applications:
Dispensing, Painting
