6 Axis Robot Arm YASKAWA GP200R Loading and Unloading Robot 200kg Payload 3140mm Reach Range with Robotic Gripper For Handling in Shanghai, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Use
- subway
- Place of origin
- Shanghai China
- Function
- Multifunctional
- Controlled axes
- 6
- Max. payload
- 200kg
- Repeatability
- ±0.2mm
- Max. working range r
- 3140mm
- Temperature
- 0-45 ℃
- Humidity
- 20%-80%
- Weight
- 1830kg
- Power supply, average
- 5.0KVA
- Category
- Industrial Robots in China
- Subcategory
- Commercial robots
- Subcategory 2
- Restaurant & hotel supplies
- Subcategory 3
- Commercial equipment & machinery
- Listing ID
- 101225092
Description
6 axis robot arm YASKAWA GP200R pick and place robot 200kg Payload 3140mm reach range with motoman YRC1000 robot controller

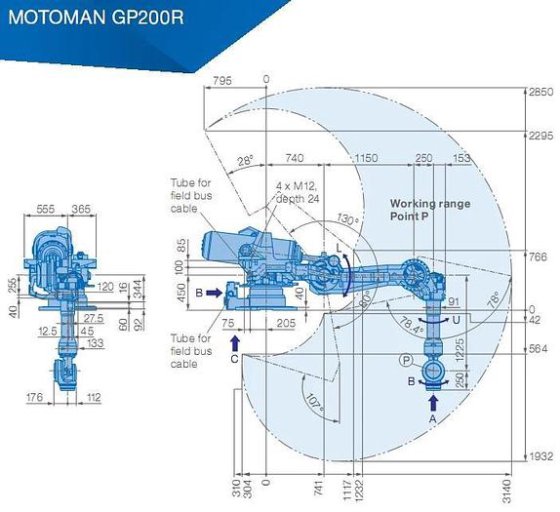

Main Specifications:
Model:GP200R
Maximum reach:3140mm
Maximum payload:200kg
Pose repeatability:± 0.2mm
Number of axes:6
Weight:1830kg
GP200R Introduction:
The flexible MOTOMAN GP200R are 6-axis shelf-mounted robots. Due to this higher position they are able to unload work pieces from above. This saves precious floor space and ensures that the space required for tool changing is kept free.
Furthermore, the internal cable routing extends the service life of the robots, increases safety and reduces cycle times. They offer high productivity, reliability and maximum performance in the areas of handling, machine tending and press brake tending.
These robots are controlled by the compact high performance MOTOMAN YRC1000 controller. It is available with the optional Functional Safety Unit (FSU) that offers a wide range of new safety functions.
KEY BENEFITS
• Flexible and powerful (200 kg payload)
• Minimum space requirements

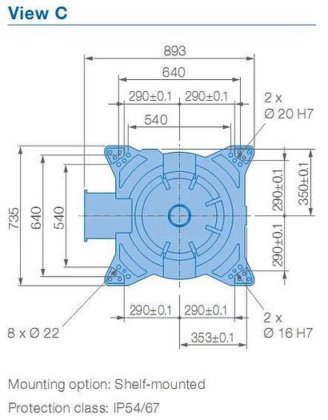

• Shelf-mounted:
– Extended working range
– Simple gripping of components
• Possibility of mounting on machine
Applications:
Handling & General Application
