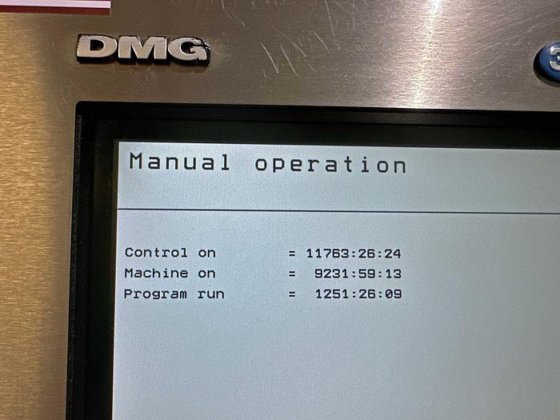

2007 DMG MORI DMU 50 eVo linear full 5-Axis only 1,251 prototype hours, automation prep! in Germantown, WI, USA
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Year
- 2007
- Stock number
- 064521
- Work area traverse path x (longitudinal)
- 19.7" (500 mm)
- Work area traverse path y (across)
- 17.7" (450 mm)
- Work area traverse path z (vertical)
- 15.7" (400 mm)
- Main drive ac-motor spindle (40/100% dc)
- 46.9 hp/33.5 hp (35 kW/25 kW)
- Spindle rotational speed up to
- 18,000 rpm.
- Spindle torque (40/100% dc)
- 95.9 ft lbs/64.1 ft lbs (130 Nm/87 Nm)

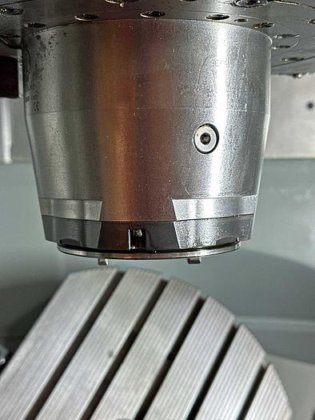

- Working spindle, tool fitting
- CAT 40
- Rapid traverse linear axes x/y/z
- 3150/1970/1970 inch/min (80/50/50 m/min)
- Tool magazine storage pockets no. of units
- 30
- Max. tool length
- 11.81" (300 mm)
- Max. tool diameter
- 3.15" (80 mm)
- Max. tool diameter at free neighbouring pockets
- 5.12" (130 mm)
- Chip-to-chip time
- 5 seconds

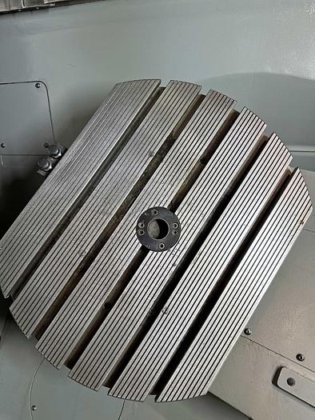

- Nc-swivel rotary table clamping surface
- 19.7" diameter x 14.9" (500 mm diameter x 380 mm)
- Table centre hole
- 30 H6 mm diameter
- Number of/distance between t-slots
- 5 x DIN 650: 0.55" X 2.48" (5/63 MM - 14H7)
- Swivel range b-axis
- +90/-18 Degrees
- Swivel range c-axis
- 360 Degrees
- Rapid traverse rotary axis b/c
- 40/50 rpm.
- Maximum table load
- 441 lbs (200 kg)
- Cooling lubricant supply capacity of tank
- 40 gallon
- Coolant delivery rate (nozzles at spindle stock)
- 5.2 gallon/min.
- Coolant pressure (nozzles at spindle stock)
- 36 psi
- Number of nozzles: cooling water/air
- 6/4 pieces
- Category
- Machining Centers in USA
- Subcategory
- 5-axis machining centers
- Listing ID
- 100922010
Description
Equipped With:
*Preparation for high pressure CTS coolant thru the spindle*
*Preparation for infrared parts measuring touch probe*
-HEIDENHAIN iTNC 530 control with 15" TFT screen
-Hydraulic workpiece clamping unit for NC rotary table with swivel axis:
Hydraulic lines are led through rotary lead through located at front of rotary table.

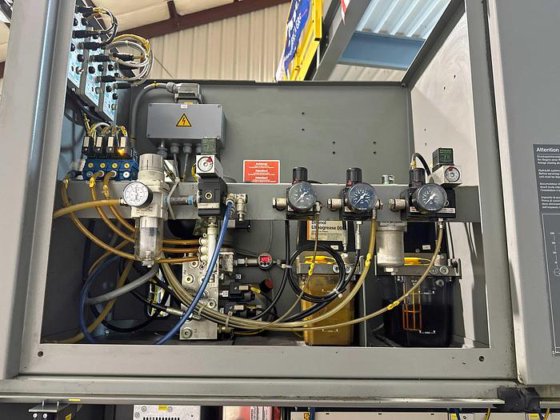

-Separate hydraulic control unit including an electrical cabinet and one clamping circuit (2 connections)
-Automatic clamping hydraulic vise
-Signal lamp 4-colour
-Direct measuring system HEIDENHAIN glass scales X/Y/Z 0.00031" resolution positioning
-Direct measuring system HEIDENHAIN rotary encoders B/C axes 18 arc second positioning

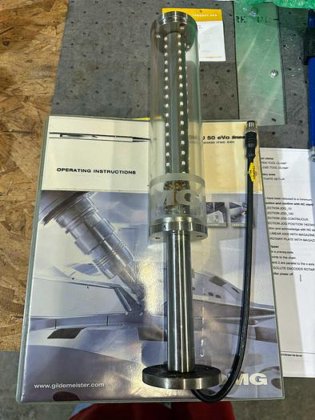

-Books, manuals, technical documentation
Machine is offered subject to availability, prior sale, and terms & conditions of FRANKE CNC Sales Agreement. To the best of our knowledge all details listed are deemed correct. It is the Buyer's responsibility to confirm all details including condition, capacity, suitability or performance and we encourage an under power inspection of the machine(s) and accessories prior to purchase.
Price quoted is FOB Purchase Point.
Price quoted includes professional de-installation and shipping preparation by Seller.
Price quoted includes the cost of loading onto truck supplied by Buyer.
