Compact And High Efficiency Small Roll Ball Mill Machine in Xiamen, Fujian, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Payment
- L/C, T/T, Western Union, Credit Cards, Paypal
- Shipping port
- Xiamen Port
- Lead time
- 20 Days
- Certificate
- CE, IOS, ROHS, SGS, UL Certificate

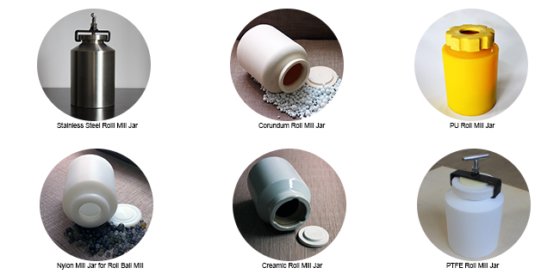

- Description of roll mill jars
- Available Specifications
- Normal ceramic roll mill jar
- From 1.0L to 15L
- 304 stainless steel roll mill jar
- From 0.5L to 20L
- Alumina ceramic (corundum) roll mill jar
- From 0.5L to 10L
- Nylon roll mill jar
- From 0.5L to 20L
- Polyurethane roll mill jar
- From 0.5L to 20L
- Ptfe/teflon roll mill jar
- From 0.5L to 20L
- Tungsten carbide roll mill jar
- From 250ml to 3L
- Roll jacket (stainless steel)
- 0.5L to 3L
- 316l stainless steel roll mill jar
- Customized
- Materials & requests
- Recommended Solutions
- Soil materials and other materials which are not allowed with any impurity contamination
- Agate mill jar
- Metal or nonmetal which are not allowed with any impurity contamination
- Zirconium mill jar
- High hardness materials like diamond, tungsten carbide
- Tungsten carbide mill jar
- Strong add & alkali materials, or other materials under high temperature
- PTFE mill jar
- Iron ore materials or other materials with low impurity sensitivity
- 304 stainless steel mill jar
- Pigment or materials with later processing under high temperature
- Nylon mill jar
- Aluminum materials like ceramic glaze
- Corundum mill jar
- Electronic materials like lithium battery
- Polyurethane mill jar

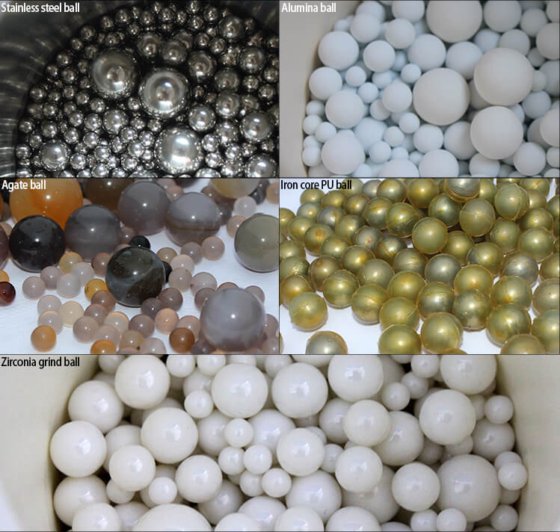

- Descriptions
- Available Specifications (Diameter Size)
- 304 stainless steel mill balls
- From 1mm to 30mm
- 316l stainless steel mill balls
- From 1mm to 30mm
- Alumina mill balls
- From 1mm-50mm
- Zirconium mill balls
- From 0.1mm to 30mm
- Agate mill balls
- From 1mm-30mm
- Tungsten carbide mill balls
- From 2mm to 20mm
- Carbon steel mill balls
- From 1mm to 30mm
- Iron core pu mill balls
- From 15mm-30mm
- Category
- Ball Mills in China
- Subcategory
- Roll ball mill
- Subcategory 2
- Ball mill machine
- Listing ID
- 100839630
Description

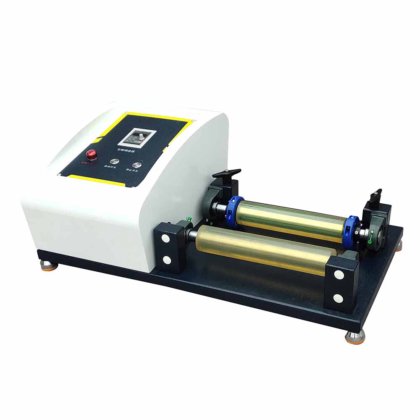

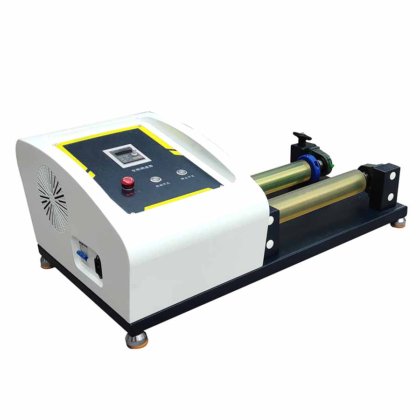

Compact And High Efficiency Small Roll Ball Mill Machine
Overview
Lab roll mill is a kind of equipment used for ultra-fine grinding and mixing for laboratory and small batch production. The machine is preferred equipment for scientific research, education, experiment and production due to its advantages such as elegant and fashion design, compact structure, easy operation, high efficiency, and uniform granularity. It is widely applied to industries of electronic material, magnetic material, biological medicine, ceramic glaze, metal powder, nonmetallic minerals, new materials, and etc.

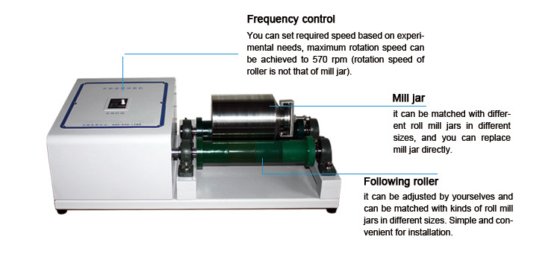

Working Principle
When mill works, the grinding media and the materials inside the tank are rotated to a certain height. Due to the gravity, they fall down from the tube wall. Materials are crushed by impact action of the grinding media, friction and shearing action of grinding media’s rolling and sliding.
Features
1. Compact structure, easy operation
2. High efficiency and uniform granularity
3.
