Tektronix Tektronix TDS540D in Richardson, TX, USA
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Oscilloscope type
- Digital Phosphor Oscilloscope (DPO)
- Number of channels
- 4
- Country of manufacture
- United States
- Maximum real-time sampling rate
- 2 GSa/s
- Mpn
- TDS540D
- Maximum bandwidth
- 500 MHz
- Category
- Oscilloscopes in USA
- Subcategory
- Analyzers & data acquisition
- Subcategory 2
- Oscilloscopes & vectorscopes
- Subcategory 3
- Test, measurement & inspection
- Listing ID
- 100839268
Description
Tektronix TDS540D Oscilloscope 500MHz 2GS/s 1F 2M 2F 2C

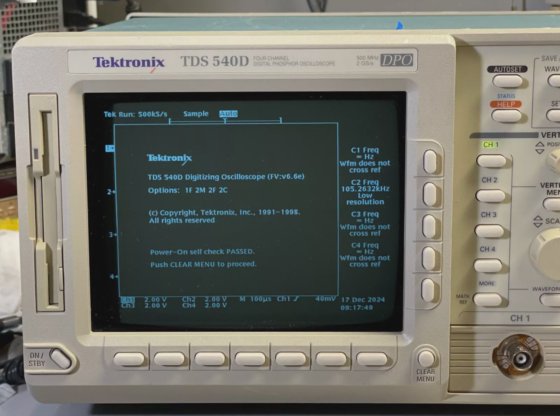

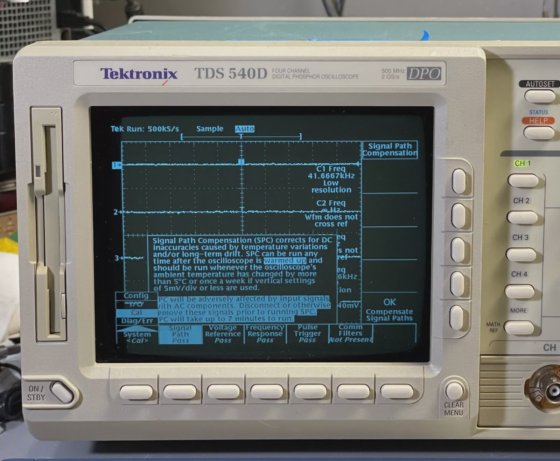

Passes self test. Passes SPC more than 15 times in a row.
After running the self tests and SPC, no additional errors appear in the error log.

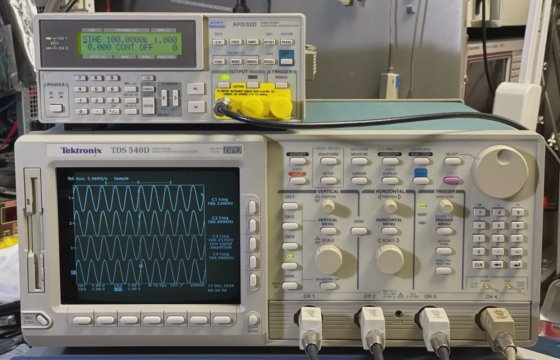

Input channels 1, 2, 3, and 4 were tested by connecting to a
uncalibrated
pulse generator set to 100kHz, 1.0V.
The Tekprobe interface was tested ok on all 4 channels.
All

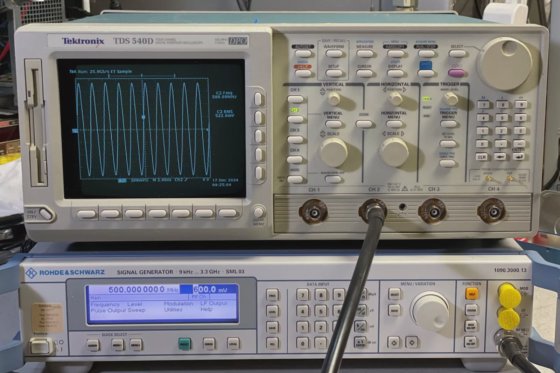

4 channels were tested for compliance w
ith Tektronix bandwidth
specification @ 500Mhz and all 4 pass.
1F - Floppy disc drive
2M - Extends standard acquisition length from 50,000 points per channel to 2 Mega samples on three or four channels, 4
Mega
samples on two channels, and 8
Mega
samples on one channel.
2F - Extended waveform math: FFT, integration and differentiation
2C -
Communication Signal Analyzer; includes comm triggers and communication mask testing.
Power cord is not included.
Probes, signal generator and function generator are not included.
There are scuffs, scratches, sticker residue and worn spots.
$1,200 USD
