Process refractometer Inline in Hamburg, Germany
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Specification
- Process refractometer PR21S model
- Measurement range 1)
- nD 1.3200-1.5200 0-90 %Brix
- Measurement accuracy 2)
- nD ±0.0002 ±0.2 %Brix
- Resolution
- nD 0.00010.1 %Brix
- Measurement period
- Approx. 10 seconds
- Wavelength
- 589 nm
- Process pressure (relative)
- 0-9 bar
- Process temperature
- 10-60 °C
- Ambient temperature
- 0-40 °C
- Ambient humidity
- 10-90 % (non-condensing)
- Temperature measurement accuracy
- ±0,2 °C
- Scales
- Refractive index (nD), concentration of sucrose (%Brix), user-defined
- Adjustment & setup 3)
- Via PC/laptop
- Parts in contact with the sample
- Sapphire, PTFE, FKM, stainless steel (1.4305)
- Mounting
- Inline
- Additional features
- Temperature compensation (ICUMSA or freely definable)IP code: IP65 total (IP67 connections)CIP capable up to 120 °C
- Interfaces
- RS-232; additional RS-232 for display, 2x analog 0(4)-20 mA; relay input, 2x relay output
- Dimensions (w x h x d)
- 220 mm x 190 mm x 220 mm
- Weight
- 3.5 kg
- Operating voltage
- 24 VDC (Min: +18 VDC; Max: +30 VDC)
- Power consumption (measurement mode)
- 5 W (without display) ; 6 W (with display)
- Power consumption (max.)
- 6 W (without display) ; 7 W (with display)
- Category
- Refractometers in Germany
- Subcategory
- Process refractometer
- Listing ID
- 100253282
Description
Inline real-time measurement in the pipeline. Range from nD 1.3200-1.5200 and 0-90 %Brix

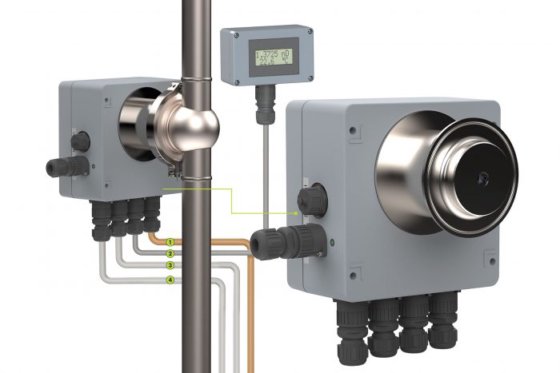

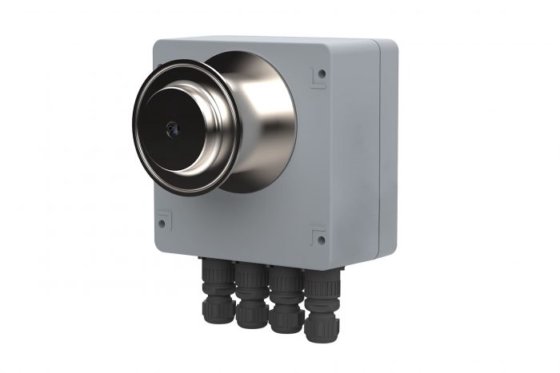

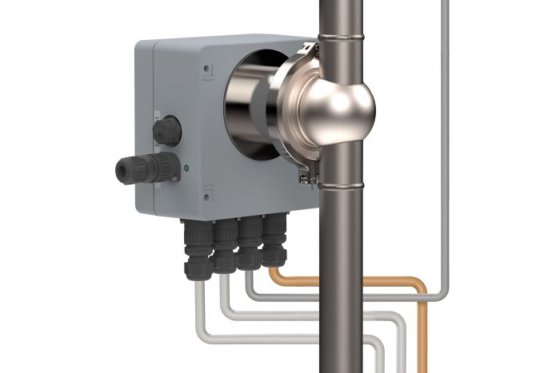

The inline process refractometer PR21S is installed in pipelines at production facilities in order to control the concentration of mixing and fermentation processes. Thanks to their standardised connections, these measurement devices can be easily mounted in pipelines. The measurement chamber is made of stainless steel, the measurement prism of scratch-resistant and particularly chemical-resistant sapphire. It is designed to prevent solids from sticking. The PR21S is used in the chemical and petrochemical industries, in automotive and aircraft manufacturing as well as in the food, sugar and beverage industries and for waste water monitoring.
Basic function
Measurement in refractive index, %Brix or a user-definable scale
Automatic temperature compensation (%Brix and freely definable for customer-specific products)
Integrated sensor for temperature monitoring
