Automated 4 Axis Vertical Machining Center for Mold Machining with High Quality Instead Second Hand Makio Machine in Guangdong, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- After-sales service
- The Whole Machine Life
- Shipping cost
- Contact the supplier about freight and estimated delivery time.
- Secure payments
- Every payment you make on is protected by the platform.
- Refund policy
- Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
- Application
- Metal
- Process usage
- Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
- Movement method
- Linear Control
- Control method
- Semi-Closed Loop Control
- Numerical control
- NC
- Processing precision
- 0.01~0.02(mm)
- Performance classification
- High-End CNC Machine Tools
- Certification
- GS, CE, RoHS, ISO 9001
- (x/y/z)three axis travel distance
- 600mm /400mm /350mm
- Spindle center to column guide
- 445mm
- Work table size (l x w)
- 700mm X 420mm
- Worktable max. load bearing
- 250kg
- Spindle speed
- 24000rpm
- Spindle taper/diameter
- Bt30/Φ100
- Rapid speed (x/y/z)
- 48/48/48 (M/Min)
- Machine weight
- 2700kg
- Transport package
- Wooden or Steel Box
- Hs code
- 8457101000
- Production capacity
- 500sets/Year
- Category
- Milling Machines in China
- Subcategory
- Machine tools
- Subcategory 2
- Cnc machine tools
- Subcategory 3
- Vertical machining center
- Subcategory 4
- Manufacturing & processing machinery
- Listing ID
- 100165869
Description
Product Description
Dongguan ESTOP Machinery Co., Ltd.
T-640A / T-640B / T-700
Passen Sie die Farbe des Erscheinungsbilds der Maschine Ihren Wünschen an.
Verfügbare Cover-Stile:
Vorteile:
1. Verwenden Sie ein DEJIE-Werkzeugmagazin. Die Lager des Werkzeugmagazins sind importierte Lager mit guter Verschleißfestigkeit und langer Lebensdauer.
2. Verwenden Sie eine Hino-Spindel, um eine langfristige Stabilität und Zuverlässigkeit der Spindelleistung zu gewährleisten.
3. Vollständiger interner Schutz, öl- und wasserdicht. Der Staubschutzeffekt ist besser.
4. Die Verbindungen aller Teile verwenden die traditionelle Schabtechnologie, um die Bearbeitungsgenauigkeit und Haltbarkeit der Werkzeugmaschine sicherzustellen.

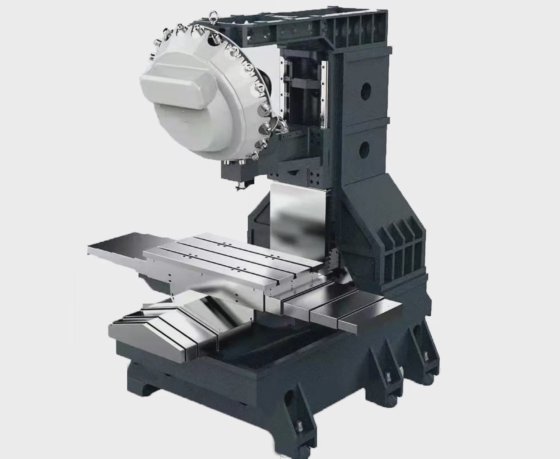

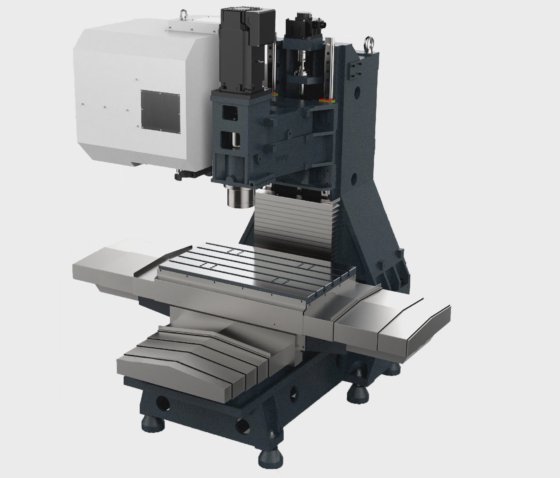

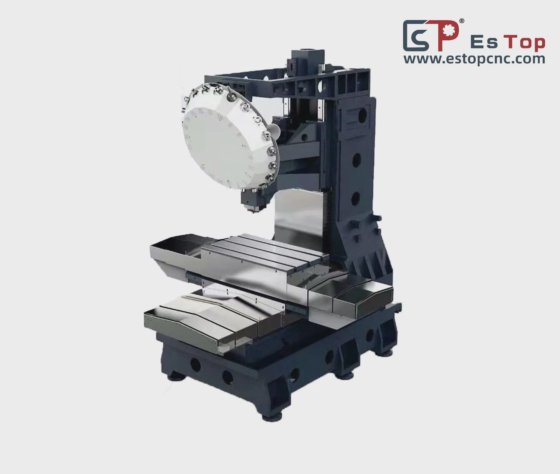

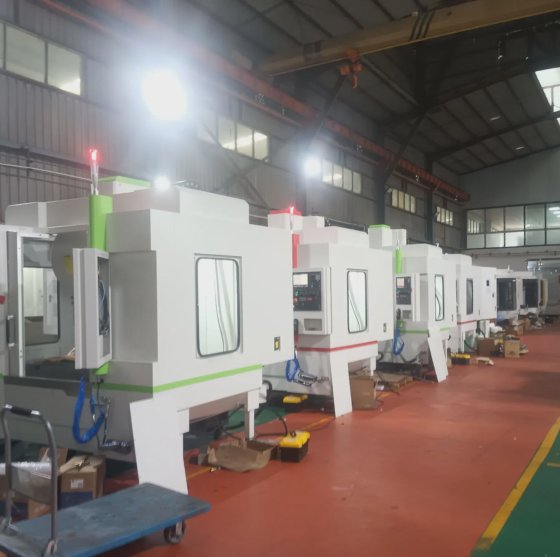

Maschinenkörper/Montagewerkstatt:
Product Parameters
Standardspezifikation der Maschine
Spezifikation
Einheit
T-640A
T-640B
T-700
T-7
Prozessspektrum
Verfahrweg der X-Achse
mm
600
600
700
